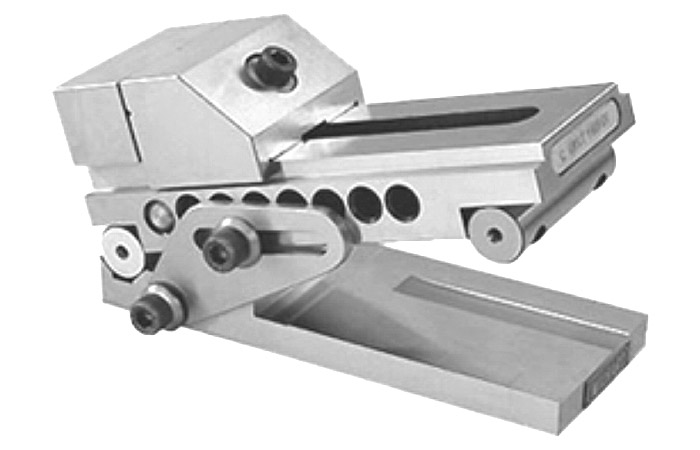

PRECISION TOOL MAKER`S SINE VICE (PIN OPERATED)

Product ID: N-169S





  Description

Key Features

  • These are very useful for manufacturing processes that require the highest standards of clamping accuracy at desired angles.
  • A minute angle step of 0.2"/5 mm allows very small angles to be set with ease using standard gauge blocks.
  • Mounted onto a precision hinged bottom plate. All the surfaces of the vice are precisely ground for extreme accuracy.
  • The moving jaw has two vees ground into it's face, one vertical the other horizontal to aid gripping round components.
  • The rapid positioning notches allow the vice to be locked in any position by means on an allen key provided with the vice.

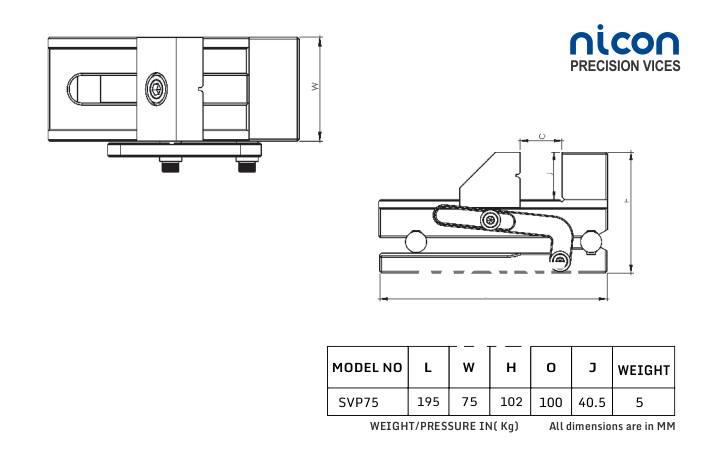

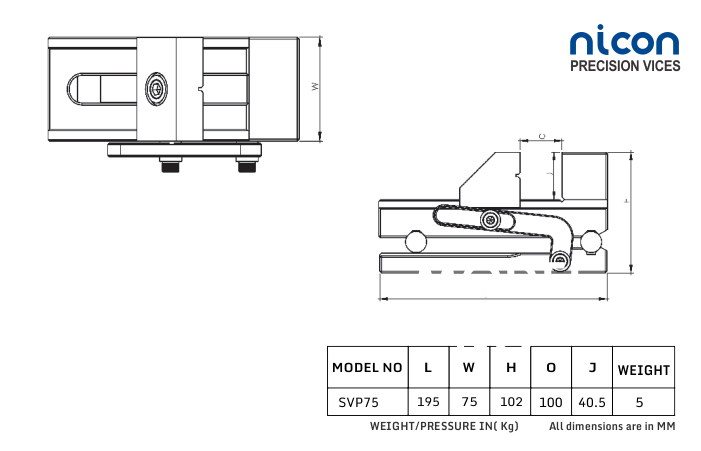

  Specification by Drawings
