TILTING & SWIVELING MACHINE VICE

Product ID: N-153





  Description

Key Features

  • Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle.
  • Angular adjustment is achieved via the angular slide that can be set to any desired angle.
  • The fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis.
  • These vices are manufactured from close-grained hi-tensile seasoned cast iron.
  • Unbreakable steel crank handle.
  • Use of hi-tensile grade fasteners provides strength and rigidity to these vices.
  • Hardened and ground jaws.
  • A milled slot in the vice base helps in the accurate location of the vice on the machine table using rectangular locating nuts.
  • Accuracy in parallelism of jaws 0.02/100mm.
  • "Hold Down" slots allow for secure clamping of the vice on the machine table.

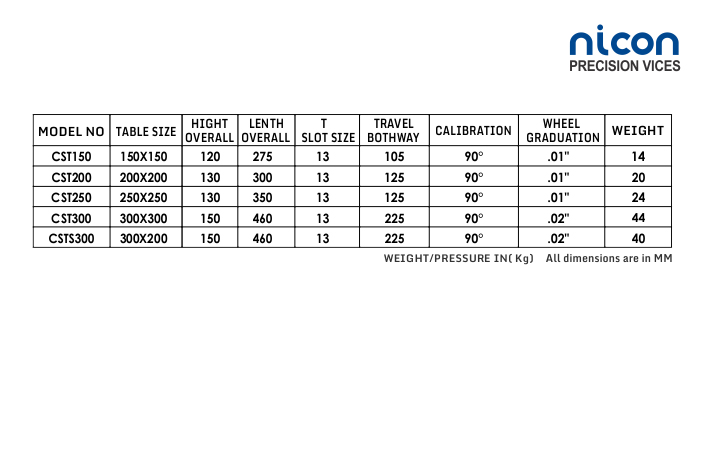

  Specification by Drawings
