Products

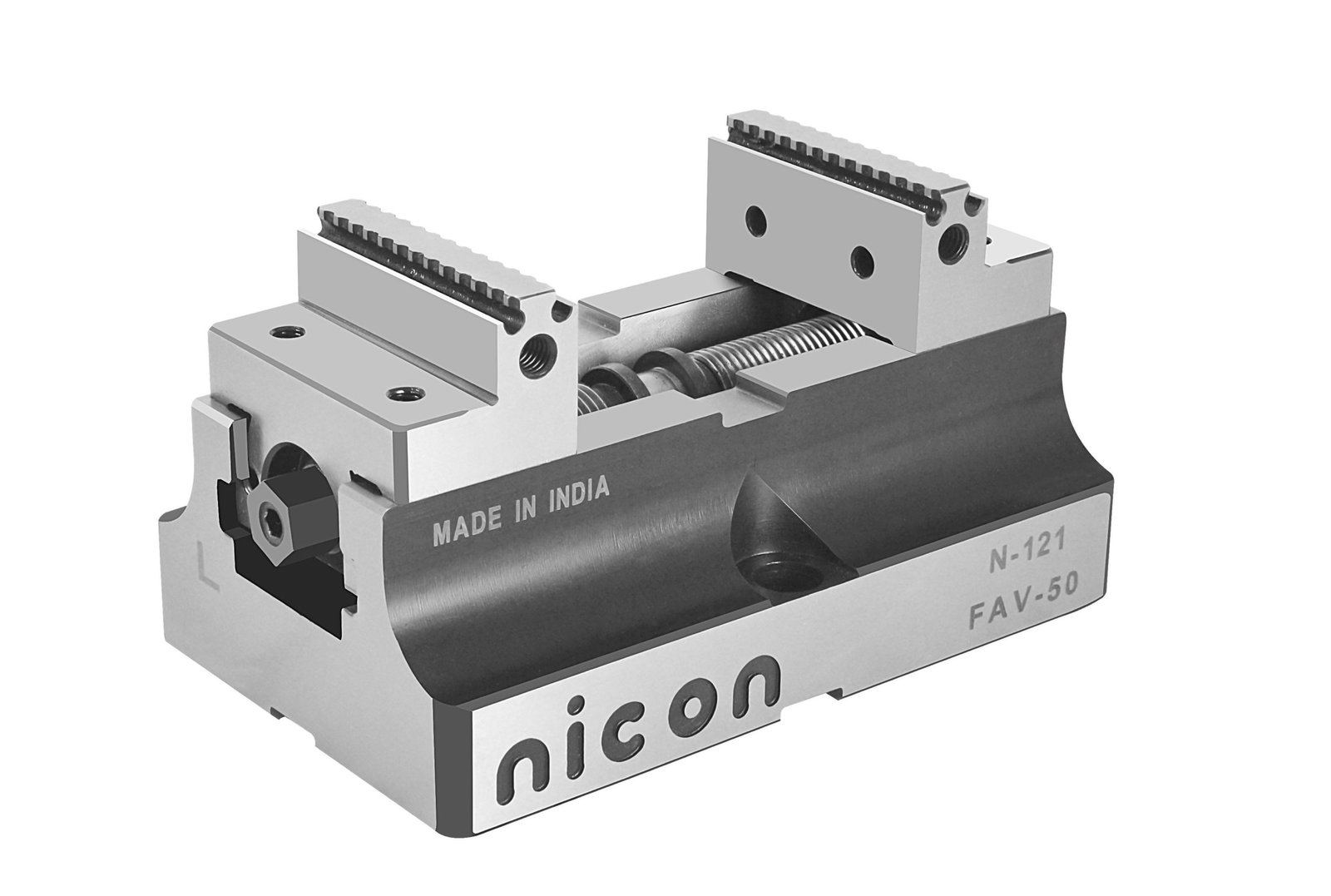

Self Centring 5-Axis Machine Vice Designed for Precision 4 & 5-Axis CNC Machines & Rotary
Table usage, either in horizontal or Vertical Machining and widely used with Precision Milling Machines.
0.02 mm Position Repeatability: Guarantees precision centering repetition for consistent workpiece alignment across complex multi-axis milling operations.
High-Holding Clamping Force : Delivers up to approximately 3000 kg of clamping pressure, providing maximum holding power at minimum operator clamping effort.
Significant Material Savings: Clamps securely on a minimum workpiece depth of just 3 mm, drastically reducing raw material waste on costly alloy stock.
Optimized Tool Clearance: The compact, space-saving profile permits the use of shorter cutting tools, decreasing machining vibration, extending tool life, and delivering superior surface finishes.
HRC 60 ± 2 Case-Hardened Construction: High-alloy wear-resistant steel is utilized throughout the body and all accessories to guarantee high rigidity, maximum performance, and zero wear.
100% Interchangeability: All components are fully interchangeable with perfect alignment, allowing customizable workholding configurations for both single and multi-vice setups.
Ideal for use in 3 Axis machining centers also for mass production with multiple vices setup.

Standard Accessories

Category: 5 Axis Machine Vices Accessories

Self Centring 5-Axis Machine Vice Designed for Precision 4 & 5-Axis CNC Machines & Rotary
Table usage, either in horizontal or Vertical Machining and widely used with Precision Milling Machines.
0.02 mm Position Repeatability: Guarantees precision centering repetition for consistent workpiece alignment across complex multi-axis milling operations.
High-Holding Clamping Force : Delivers up to approximately 3000 kg of clamping pressure, providing maximum holding power at minimum operator clamping effort.
Significant Material Savings: Clamps securely on a minimum workpiece depth of just 3 mm, drastically reducing raw material waste on costly alloy stock.
Optimized Tool Clearance: The compact, space-saving profile permits the use of shorter cutting tools, decreasing machining vibration, extending tool life, and delivering superior surface finishes.
HRC 60 ± 2 Case-Hardened Construction: High-alloy wear-resistant steel is utilized throughout the body and all accessories to guarantee high rigidity, maximum performance, and zero wear.
100% Interchangeability: All components are fully interchangeable with perfect alignment, allowing customizable workholding configurations for both single and multi-vice setups.
Ideal for use in 3 Axis machining centers also for mass production with multiple vices setup.
