Products

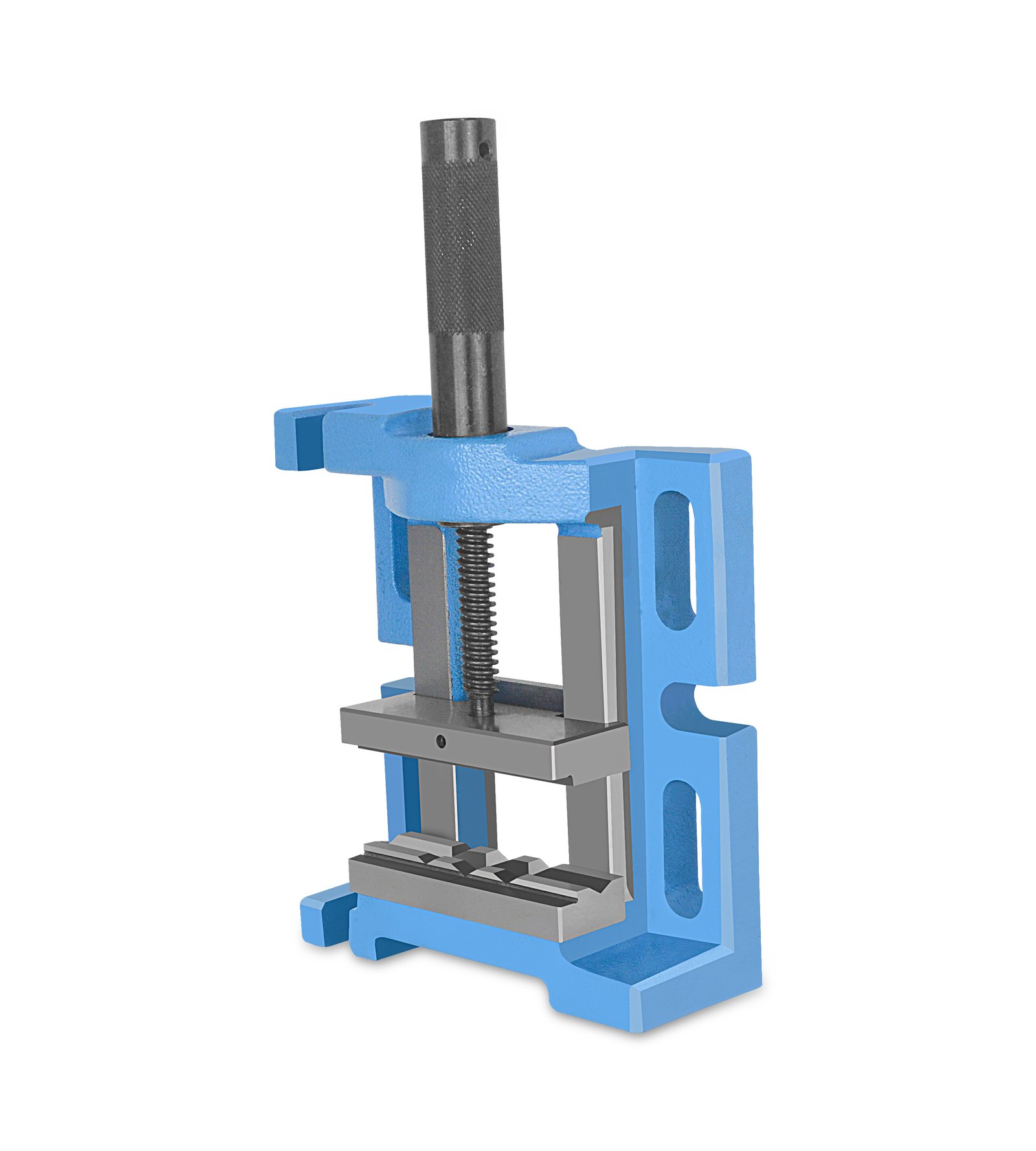

3 WAY UNIGRIP VICE

  • Spheroidal Graphite (S.G.) Iron Construction: Cast from premium-grade S.G. Iron (Ductile Cast Iron), featuring nodular graphite microstructures that deliver steel-like tensile strength, superior yield resistance, and high impact toughness compared to standard grey cast iron.
  • Tri-Position Ground Mounting Faces: Features three precisely ground surfaces (base, side face, and end face), enabling right-angle machining across all axes with a single workpiece setup.
  • Long & Cumbersome Workpiece Handling: Utilizing the side or end face as a base allows the jaw width to act as jaw height, accommodating long workpieces that are difficult to hold in standard vices.
  • Dual-Axis V-Prism Fixed Jaw: Integrated longitudinal and transversal prisms provide a firm, 4-point grip on round jobs horizontally or vertically.
  • Flat Part Retention Seat: Special seating step built into jaw faces facilitates level, low-profile holding of flat plates and thin stock.
  • Telescoping Hollow Handgrip Drive: Drive spindle moves inside a hollow handgrip, allowing operation away from machine table edges to expand the vice's scope of application.
  • Slotted Mounting Base: Slotted base design enables quick, accurate positioning and secure bolting to drill press tables.
  • High Clamping Rigidity: Rugged design provides powerful, vibration-free clamping required for precision drilling, tapping, and reaming operations.

Category: Drill Press Vices

  • Spheroidal Graphite (S.G.) Iron Construction: Cast from premium-grade S.G. Iron (Ductile Cast Iron), featuring nodular graphite microstructures that deliver steel-like tensile strength, superior yield resistance, and high impact toughness compared to standard grey cast iron.
  • Tri-Position Ground Mounting Faces: Features three precisely ground surfaces (base, side face, and end face), enabling right-angle machining across all axes with a single workpiece setup.
  • Long & Cumbersome Workpiece Handling: Utilizing the side or end face as a base allows the jaw width to act as jaw height, accommodating long workpieces that are difficult to hold in standard vices.
  • Dual-Axis V-Prism Fixed Jaw: Integrated longitudinal and transversal prisms provide a firm, 4-point grip on round jobs horizontally or vertically.
  • Flat Part Retention Seat: Special seating step built into jaw faces facilitates level, low-profile holding of flat plates and thin stock.
  • Telescoping Hollow Handgrip Drive: Drive spindle moves inside a hollow handgrip, allowing operation away from machine table edges to expand the vice's scope of application.
  • Slotted Mounting Base: Slotted base design enables quick, accurate positioning and secure bolting to drill press tables.
  • High Clamping Rigidity: Rugged design provides powerful, vibration-free clamping required for precision drilling, tapping, and reaming operations.
