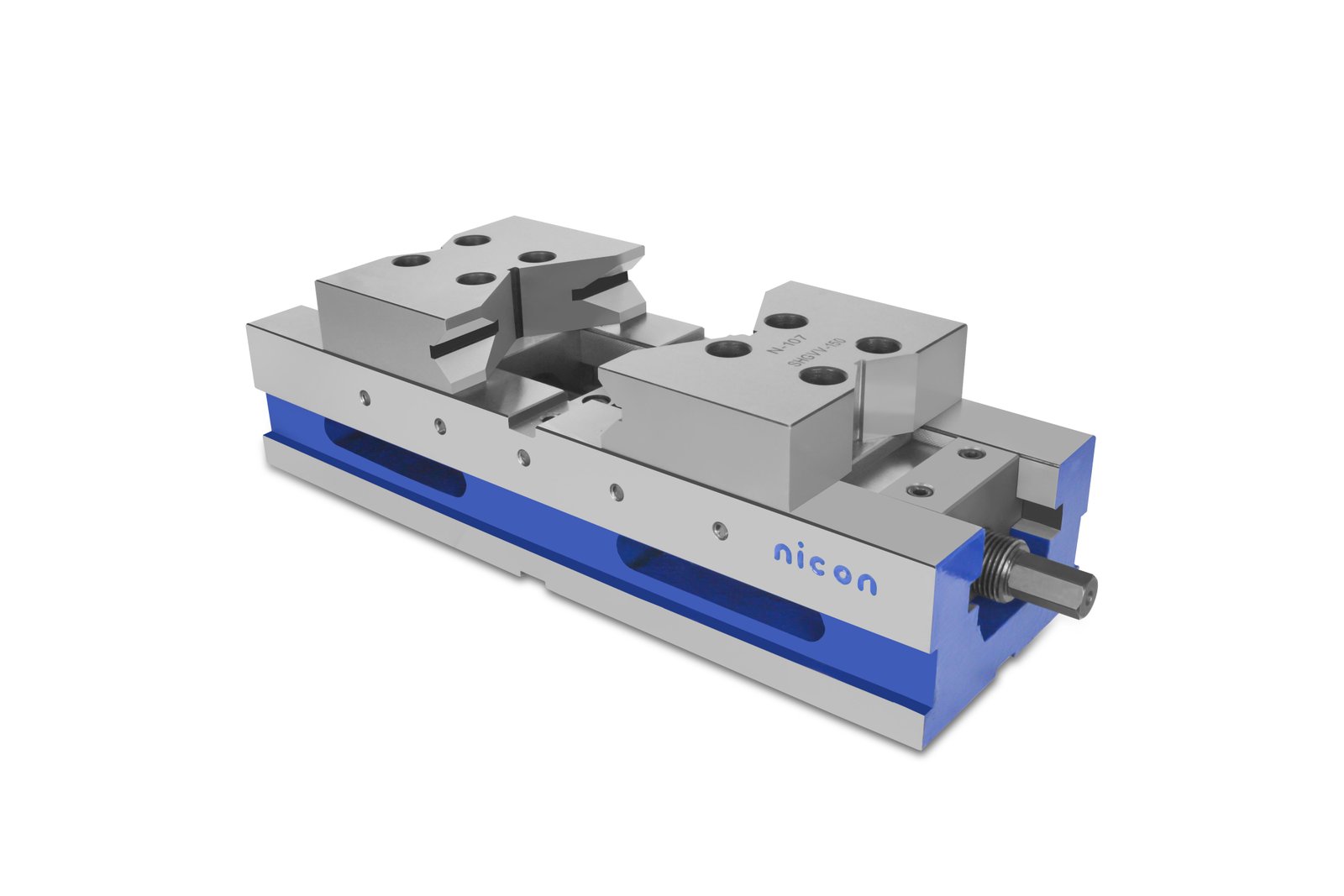

SELF CENTRING HIGH GRIP VERTICAL SHAFT VICE

• Self Centring Hi-Grip shaft Vice Designed for accurate centring for round jobs on Precision Milling machine & Widely Used With CNC Machining Center.
• High-Grade FCD 60 grade ductile iron Body, Grounded Top & Bottom. This CNC vice Securely Holds round jobs and can also use in various shapes of components with the help of different available optional  jaws.
• Perfect Vice for Mass Production environments.
• Bed Hight Matched with Multiple Vice Orders.
• High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
• Tenon & Tenon Slots Provided for Effortless Truing Of Vice on Machine Table.
• High Clamping Force can Achieve by Effortless handle movement which eliminates Hammering on vice handle.
• Maximum Clamping Force 3500 kg.



STANDARD ACCESSORIES

• 4 Side Clamps.
• 1 Box Wrench.
• 2 Positioning Key Nuts, 1 work stopper
