Product Overview & Key Features

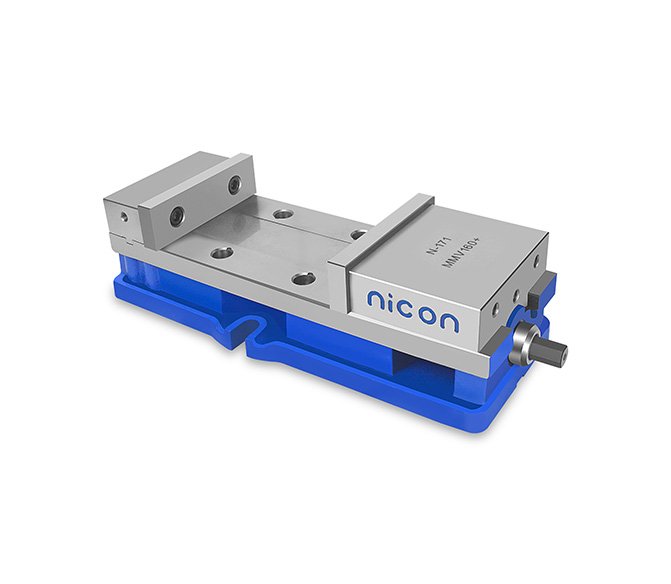

Designed specifically for precision milling machines and CNC machining centres, this vice delivers high accuracy, maximum clamping pressure, and long-term durability under heavy machining conditions.

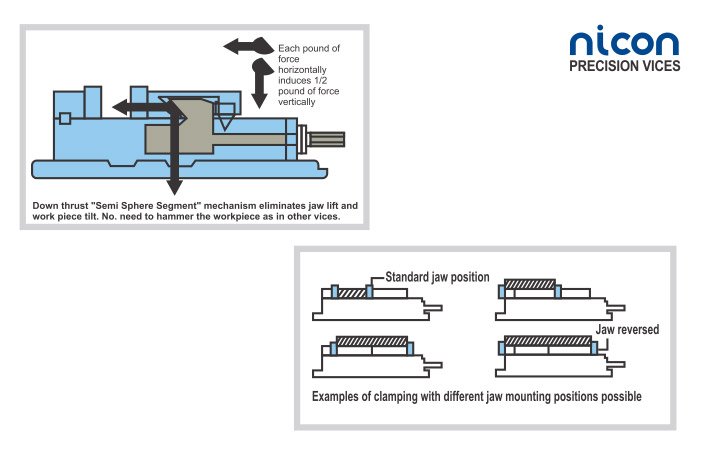

Eliminates Workpiece Lift: The integrated lock-down mechanism pulls the movable jaw downward as it clamps forward, guaranteeing zero part tilt and reliable surface accuracy.
Hammer-Free Clamping: The sealed, low-friction bearing system multiplies force smoothly via handle rotation—protecting the lead screw and eliminating the need to strike the handle.
Rapid Table Alignment: Built-in tenon slots fit standard T-nuts to align the vice parallel to the machine axis without lengthy dial-indicator setups.
Material: High-strength ductile cast iron body.
Accuracy: Parallelism and squareness within 0.02 / 100 mm.
Bed & Jaws: Hardened bed and jaw plates ensure extended service life and performance consistency.
Clamping Mechanism Sealed low-friction bearing system generating higher clamping force.
Nut Design Redesigned lightweight nut while maintaining standardized bed height.
Interchangeability All parts are 100% interchangeable and available as spare parts.
Options Available with an optional swivel base.

STANDARD ACCESSORIES

Category: Lock Down Jaw Vices

Product Overview & Key Features

Designed specifically for precision milling machines and CNC machining centres, this vice delivers high accuracy, maximum clamping pressure, and long-term durability under heavy machining conditions.
Eliminates Workpiece Lift: The integrated lock-down mechanism pulls the movable jaw downward as it clamps forward, guaranteeing zero part tilt and reliable surface accuracy.
Hammer-Free Clamping: The sealed, low-friction bearing system multiplies force smoothly via handle rotation—protecting the lead screw and eliminating the need to strike the handle.
Rapid Table Alignment: Built-in tenon slots fit standard T-nuts to align the vice parallel to the machine axis without lengthy dial-indicator setups.
Material: High-strength ductile cast iron body.
Accuracy: Parallelism and squareness within 0.02 / 100 mm.
Bed & Jaws: Hardened bed and jaw plates ensure extended service life and performance consistency.
Clamping Mechanism Sealed low-friction bearing system generating higher clamping force.
Nut Design Redesigned lightweight nut while maintaining standardized bed height.
Interchangeability All parts are 100% interchangeable and available as spare parts.
Options Available with an optional swivel base.
