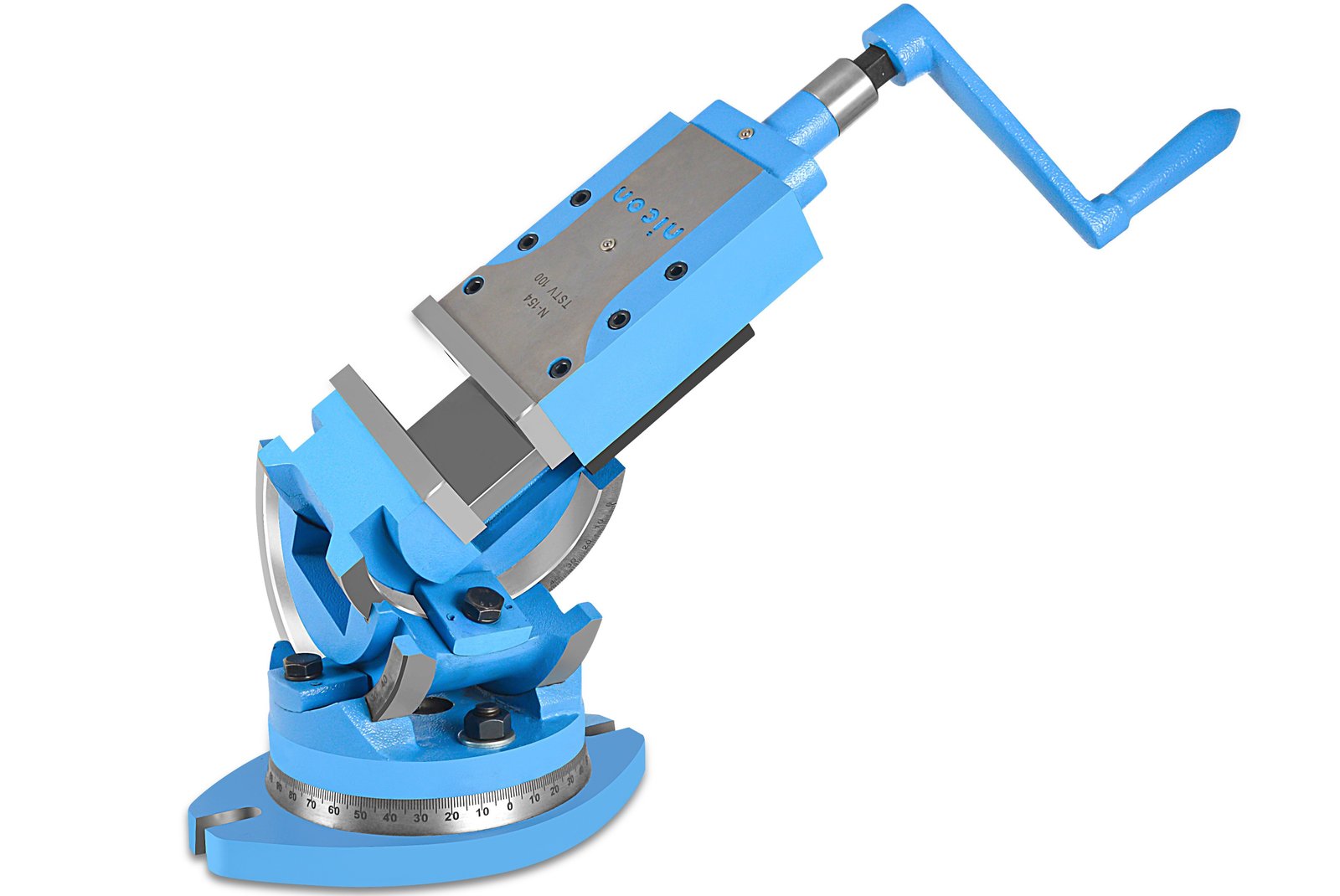

3 WAY TILTING & SWIVELING MACHINE VICE

  • Complete 3-Axis Workpiece Setting: Features two precision angular slides and a 360° swivel base to allow rapid, accurate 3-axis compound angle setups for complex toolroom machining.
  • Wide Angular Adjustment Range: Provides a 45° tilting range on either side along with 90° vertical indexing, giving operators total flexibility for compound angle passes.
  • Close-Grained Seasoned Cast Iron Build: Manufactured from premium hi-tensile close-grained seasoned cast iron for maximum structural strength, long-term stability, and chatter-free operations.
  • Parallelism Precision: Strict jaw parallelism maintained within 0.02 / 100 mm ensures accurate workpiece holding during intricate jig boring and grinding.
  • Hardened & Ground Steel Jaws: Precision ground, case-hardened steel jaw plates provide long service life, high wear resistance, and repeatable clamping.
  • Accurate Table Truing & Hold-Down Slots: Features a precision-milled slot in the base for rectangular locating nuts and dedicated "Hold Down" slots for secure table clamping.
  • High-Tensile Fasteners & Steel Crank: Assembled with high-tensile grade fasteners throughout for ultimate rigidity and equipped with an unbreakable steel crank handle.



Category: Milling Machine Vices and Tables

  • Complete 3-Axis Workpiece Setting: Features two precision angular slides and a 360° swivel base to allow rapid, accurate 3-axis compound angle setups for complex toolroom machining.
  • Wide Angular Adjustment Range: Provides a 45° tilting range on either side along with 90° vertical indexing, giving operators total flexibility for compound angle passes.
  • Close-Grained Seasoned Cast Iron Build: Manufactured from premium hi-tensile close-grained seasoned cast iron for maximum structural strength, long-term stability, and chatter-free operations.
  • Parallelism Precision: Strict jaw parallelism maintained within 0.02 / 100 mm ensures accurate workpiece holding during intricate jig boring and grinding.
  • Hardened & Ground Steel Jaws: Precision ground, case-hardened steel jaw plates provide long service life, high wear resistance, and repeatable clamping.
  • Accurate Table Truing & Hold-Down Slots: Features a precision-milled slot in the base for rectangular locating nuts and dedicated "Hold Down" slots for secure table clamping.
  • High-Tensile Fasteners & Steel Crank: Assembled with high-tensile grade fasteners throughout for ultimate rigidity and equipped with an unbreakable steel crank handle.
