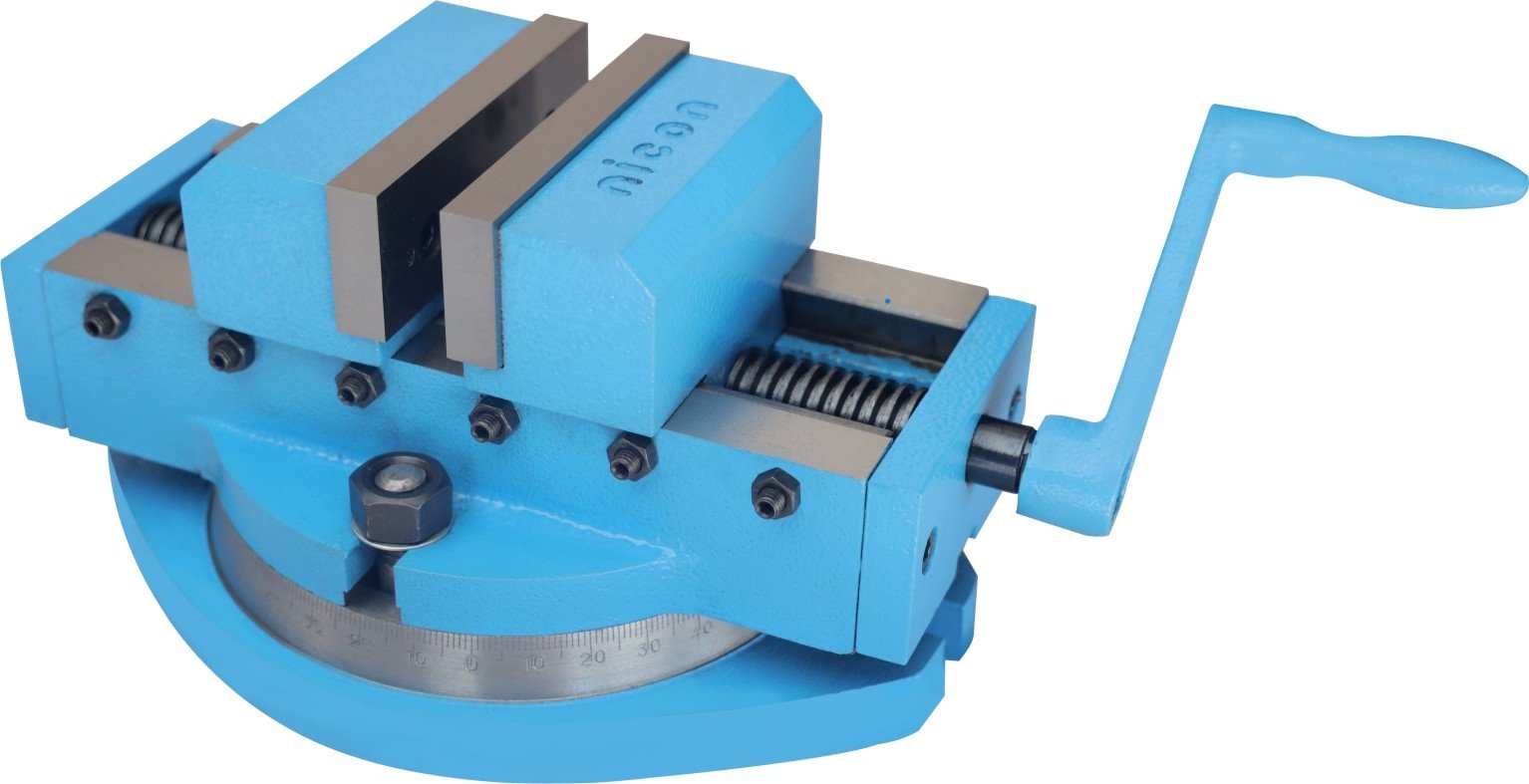

SELF CENTERING VICE SWIVEL & FIXED BASE

  • Workpiece Centering: Driven by an opposite-thread screw mechanism that automatically moves both jaws inward to center the workpiece on the machine spindle datum.
  • Single Machine Setting Efficiency: Eliminates repetitive re-zeroing when performing identical operations on varying-sized workpieces, saving valuable setup time in production runs.
  • Convertible Swivel-to-Fixed Base: Offers dual-configuration flexibility; easily converts from a 360° swiveling vice to a compact fixed-base vice simply by removing the swivel base assembly.
  • 360° Graduated Scale: Features a fully graduated 360° swivel base for quick, precise angular alignment along the vertical axis.
  • Graded Cast Iron & Tool Steel Construction: Body is manufactured from graded cast iron for superior rigidity, equipped with fully hardened and ground tool steel jaw plates for long-lasting accuracy.

Category: Milling Machine Vices and Tables

  • Workpiece Centering: Driven by an opposite-thread screw mechanism that automatically moves both jaws inward to center the workpiece on the machine spindle datum.
  • Single Machine Setting Efficiency: Eliminates repetitive re-zeroing when performing identical operations on varying-sized workpieces, saving valuable setup time in production runs.
  • Convertible Swivel-to-Fixed Base: Offers dual-configuration flexibility; easily converts from a 360° swiveling vice to a compact fixed-base vice simply by removing the swivel base assembly.
  • 360° Graduated Scale: Features a fully graduated 360° swivel base for quick, precise angular alignment along the vertical axis.
  • Graded Cast Iron & Tool Steel Construction: Body is manufactured from graded cast iron for superior rigidity, equipped with fully hardened and ground tool steel jaw plates for long-lasting accuracy.
