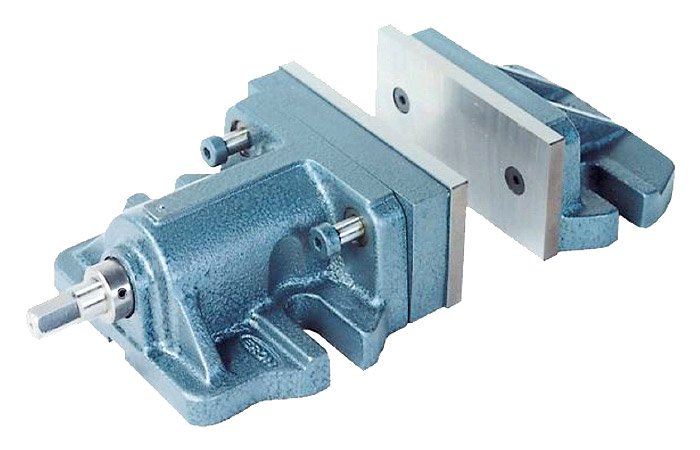

TWO PIECE ADJUSTABLE MILLING MACHINE VICE

  • Full Machine Bed Utilization: The two-piece independent body construction allows clamping elements to be mounted anywhere along the T-slots, removing conventional jaw-opening limits for extra-large parts.
  • Direct Bed Seating Rigidity: Workpieces rest directly on the machine bed surface, ensuring maximum structural stiffness and vibration damping during heavy cutting passes.
  • Integrated Thrust Bearing Drive: Features an integrated thrust bearing in the power transmission mechanism, delivering high clamping pressure with smooth, low-effort handle rotation.
  • Removable Grooved Jaw Inserts: Precision ground and hardened grooved jaw inserts maintain strict accuracy and repeatability over an extended service life.
  • High-Strength Heavy Castings: Both the clamp base body and rigid fixed base are constructed from high-grade cast iron to withstand heavy machining forces.
  • Versatile Equipment Integration: Engineered for high-clamping-force operations on conventional milling machines, drill presses, and various machining equipment.

Category: Milling Machine Vices and Tables

  • Full Machine Bed Utilization: The two-piece independent body construction allows clamping elements to be mounted anywhere along the T-slots, removing conventional jaw-opening limits for extra-large parts.
  • Direct Bed Seating Rigidity: Workpieces rest directly on the machine bed surface, ensuring maximum structural stiffness and vibration damping during heavy cutting passes.
  • Integrated Thrust Bearing Drive: Features an integrated thrust bearing in the power transmission mechanism, delivering high clamping pressure with smooth, low-effort handle rotation.
  • Removable Grooved Jaw Inserts: Precision ground and hardened grooved jaw inserts maintain strict accuracy and repeatability over an extended service life.
  • High-Strength Heavy Castings: Both the clamp base body and rigid fixed base are constructed from high-grade cast iron to withstand heavy machining forces.
  • Versatile Equipment Integration: Engineered for high-clamping-force operations on conventional milling machines, drill presses, and various machining equipment.
