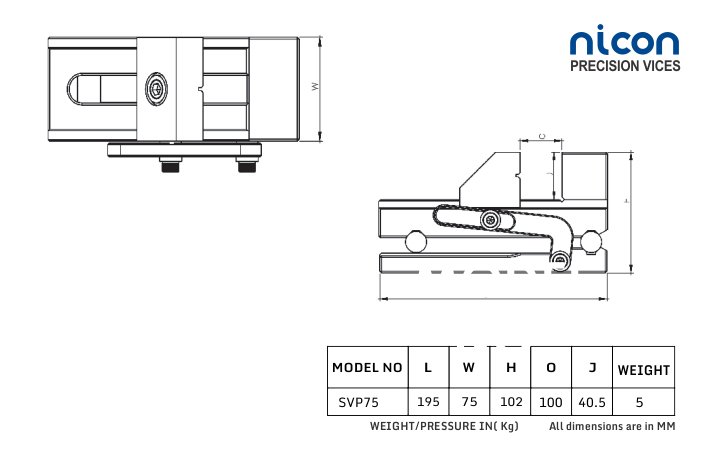

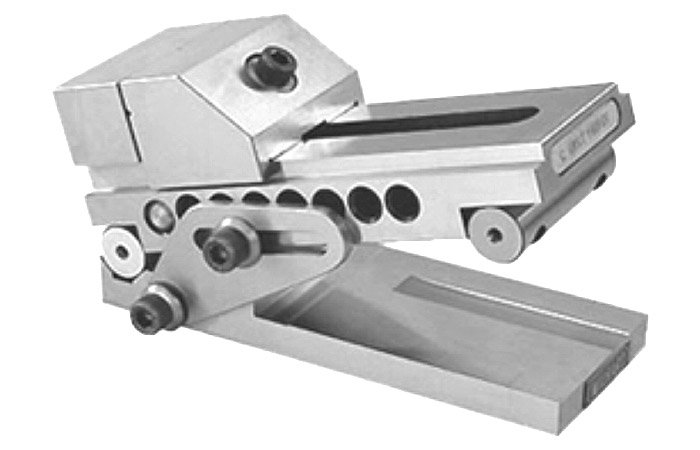

PRECISION TOOL MAKER`S SINE VICE (PIN OPERATED)

  • High-Accuracy Sine Angular Setting: Designed for manufacturing and toolroom processes requiring strict clamping accuracy at exact angular positions using standard gauge blocks (slip gauges).
  • 0.2" / 5 mm Minute Angle Step: Features a 0.2" / 5 mm angle step on the base roll, enabling easy, precise setting of very small angles using standard gauge blocks (slip gauges).
  • Rapid Pin-and-Notch Jaw Positioning: Equipped with rapid positioning notches that allow the movable jaw to be quickly positioned and locked securely with the included Allen key.
  • Precision Ground All Over: All surfaces are precisely ground to maintain tight parallelism, squareness, and exact datum alignment across angular setups.
  • Dual-Axis V-Grooved Moving Jaw: Features two ground V-vees (one vertical, one horizontal) cut directly into the moving jaw face for secure clamping of round components and pins.

Category: Precision Grinding Vices and Accessories

  • High-Accuracy Sine Angular Setting: Designed for manufacturing and toolroom processes requiring strict clamping accuracy at exact angular positions using standard gauge blocks (slip gauges).
  • 0.2" / 5 mm Minute Angle Step: Features a 0.2" / 5 mm angle step on the base roll, enabling easy, precise setting of very small angles using standard gauge blocks (slip gauges).
  • Rapid Pin-and-Notch Jaw Positioning: Equipped with rapid positioning notches that allow the movable jaw to be quickly positioned and locked securely with the included Allen key.
  • Precision Ground All Over: All surfaces are precisely ground to maintain tight parallelism, squareness, and exact datum alignment across angular setups.
  • Dual-Axis V-Grooved Moving Jaw: Features two ground V-vees (one vertical, one horizontal) cut directly into the moving jaw face for secure clamping of round components and pins.
