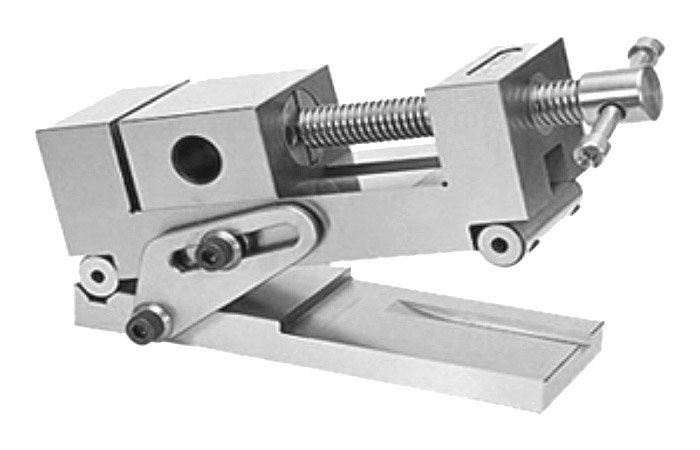

TOOL MAKERS SINE VICE (SCREW OPERATED)

  • High-Accuracy Sine Angular Setting: Designed for manufacturing and toolroom processes requiring strict clamping accuracy at exact angular positions using standard gauge blocks (slip gauges).
  • 0.2" / 5 mm Minute Angle Step: Features a built-in 0.2" / 5 mm step on the base roll, facilitating quick, precise setting of very small angles without gauge block interference.
  • Wear-Resistant Gunmetal Bushing: The precision lead screw operates inside a specially designed gunmetal bush insert, significantly reducing internal friction, preventing thread wear, and extending tool life.
  • Precision Square-Thread Lead Screw: Smooth clamping and releasing action driven via a precision-cut square thread lead screw for fine, controlled clamping pressure.
  • Dual-Axis V-Grooved Moving Jaw: Moving jaw incorporates two ground V-grooves (one vertical, one horizontal) for positive gripping of round components, pins, and shafts.
  • Toolroom Precision Standard: Ideal for demanding angular surface grinding, jig boring, engraving, and compound-angle inspection tasks.

Category: Precision Grinding Vices and Accessories

  • High-Accuracy Sine Angular Setting: Designed for manufacturing and toolroom processes requiring strict clamping accuracy at exact angular positions using standard gauge blocks (slip gauges).
  • 0.2" / 5 mm Minute Angle Step: Features a built-in 0.2" / 5 mm step on the base roll, facilitating quick, precise setting of very small angles without gauge block interference.
  • Wear-Resistant Gunmetal Bushing: The precision lead screw operates inside a specially designed gunmetal bush insert, significantly reducing internal friction, preventing thread wear, and extending tool life.
  • Precision Square-Thread Lead Screw: Smooth clamping and releasing action driven via a precision-cut square thread lead screw for fine, controlled clamping pressure.
  • Dual-Axis V-Grooved Moving Jaw: Moving jaw incorporates two ground V-grooves (one vertical, one horizontal) for positive gripping of round components, pins, and shafts.
  • Toolroom Precision Standard: Ideal for demanding angular surface grinding, jig boring, engraving, and compound-angle inspection tasks.
