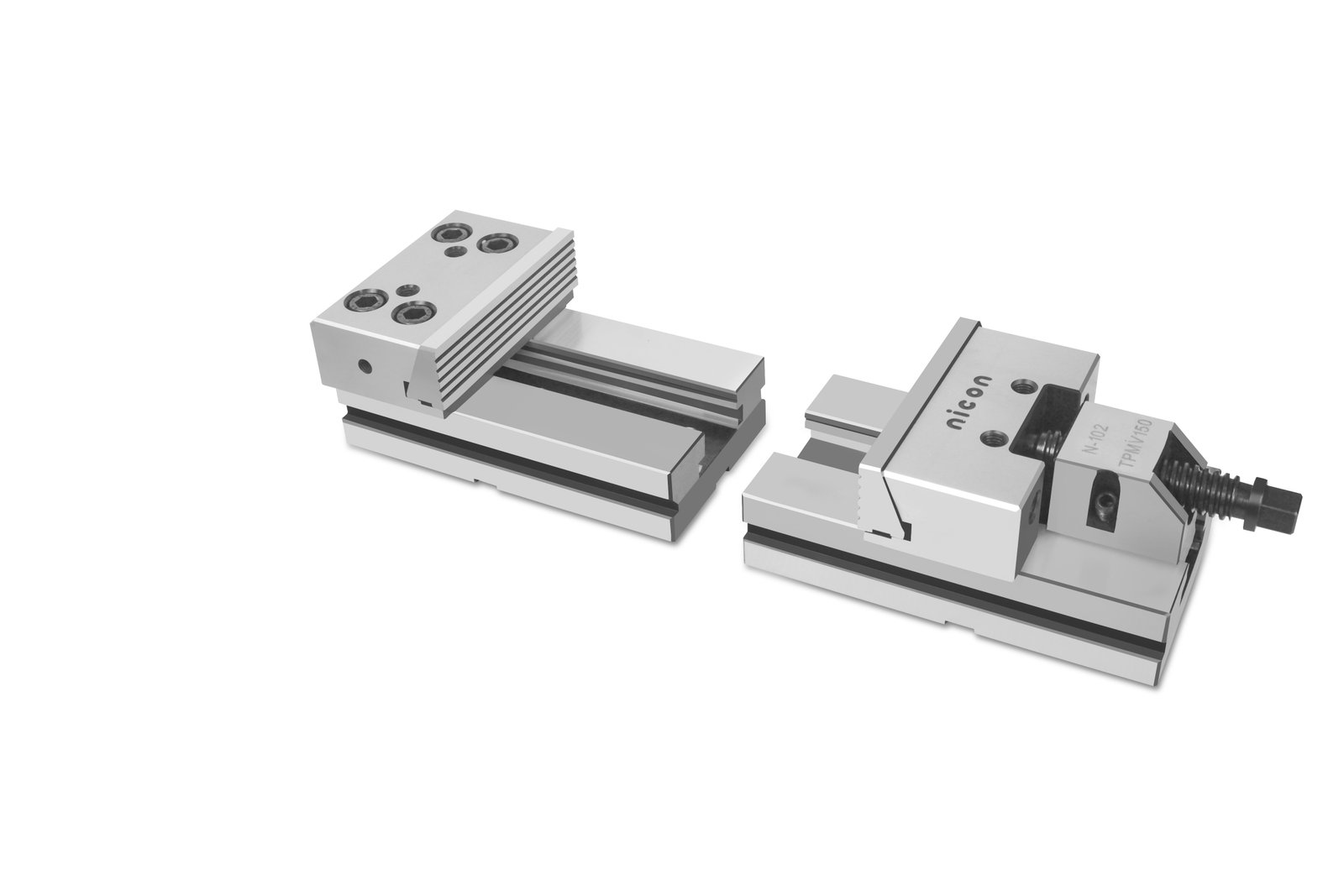

PRECISION TWO PIECE MODULAR MACHINE VICE

• Two Piece Modular Vice designed for precision milling, grinding, and extensive use with CNC and conventional milling machines.

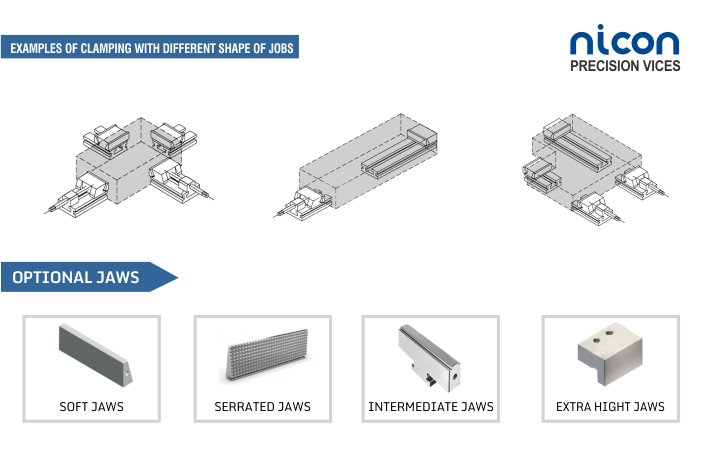

• Modular elements provide secure clamping of large workpieces requiring heavy machining, utilizing the machine table as the working surface.
• An ideal solution for a wide range of applications and a perfect complement or alternative to single and double vices.
• Both jaw plates feature a pull-down angle design, ensuring the workpiece is drawn firmly against the vice base during clamping for precise and secure holding.
• All vice components are fully interchangeable with precise alignment, enabling versatile work-holding configurations.
• The space-saving design and robust construction provide a maximum clamping ratio relative to the overall dimensions of the vice.
• Four additional tapped holes with a ground rear face on the back jaw increase the maximum opening capacity when used with jaw extensions.
• Manufactured from high-alloy, wear-resistant steel, case hardened to HRC 60 ±2 for maximum rigidity, superior performance, and extended service life.

STANDARD ACCESSORIES

• 1 Work Stopper
• 1 Pair of Standard 16 mm Positioning Key Nuts
• 4 Clamps
• T Allen Key
• 1 Box Wrench
