Products
Engineering Tools
WEDGE CLAMP :
N-401
LOADING IMAGES

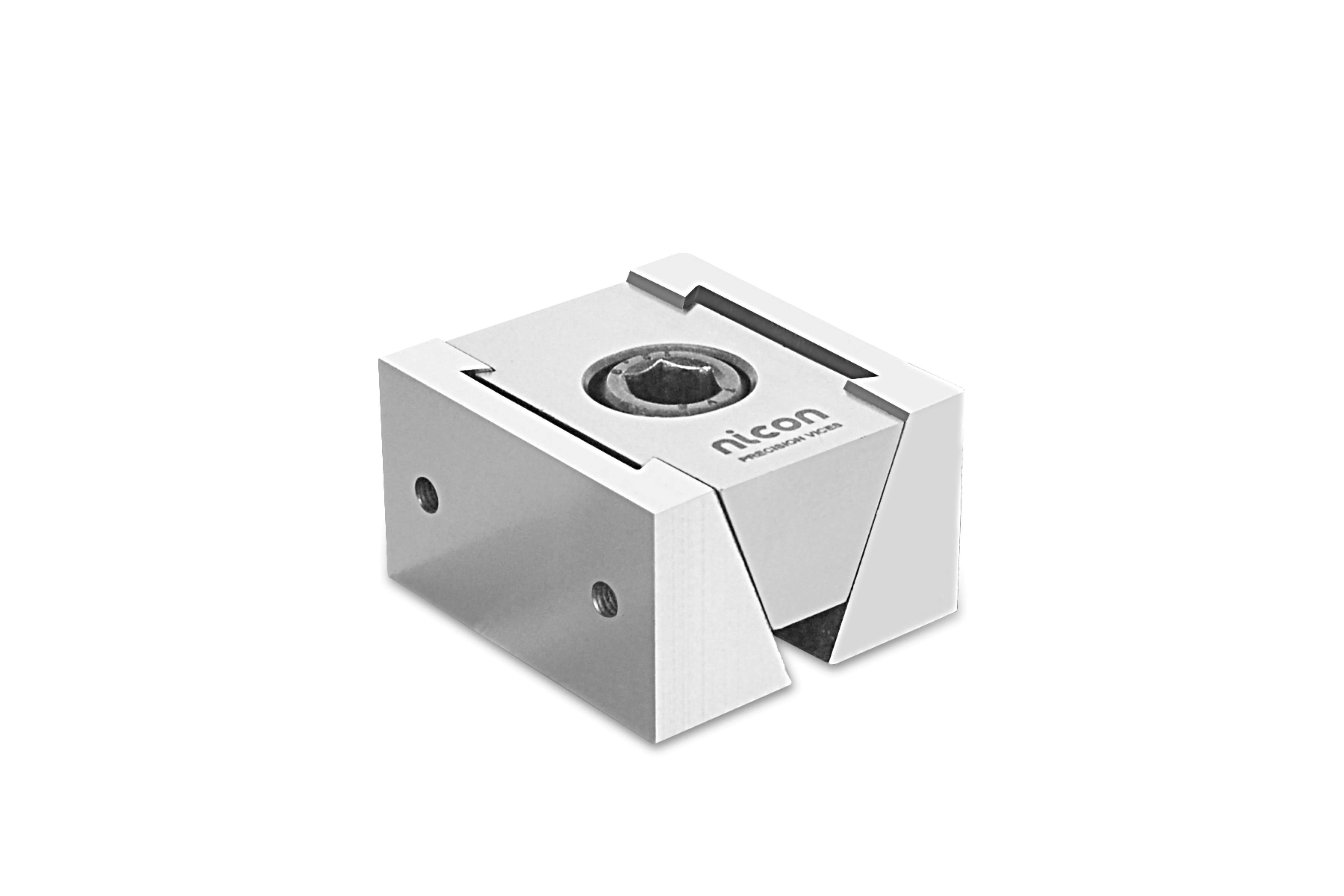

WEDGE CLAMP
Product ID: N-401
Add To Cart
Description
Wedge clamps are ideal for multiple clamping operations, but can also be used for clamping individual workpieces.
Clamping with wedge clamps is achieved via the socket head cap screw and the clamp wedge, which function by moving both jaws outward.
When the screw is loosened, the clamp wedge returns to its original positoin via an internal return spring, which, in turn, loosens the tension.
The long hole in the clamp wedge serves to compensate for tolerances in the workpiece.
Hardened & Ground Wedge surfaces.
Socket head cap screw Hi-Tensile strength Socket head cap screw.
Specification by Drawings
