Key Features

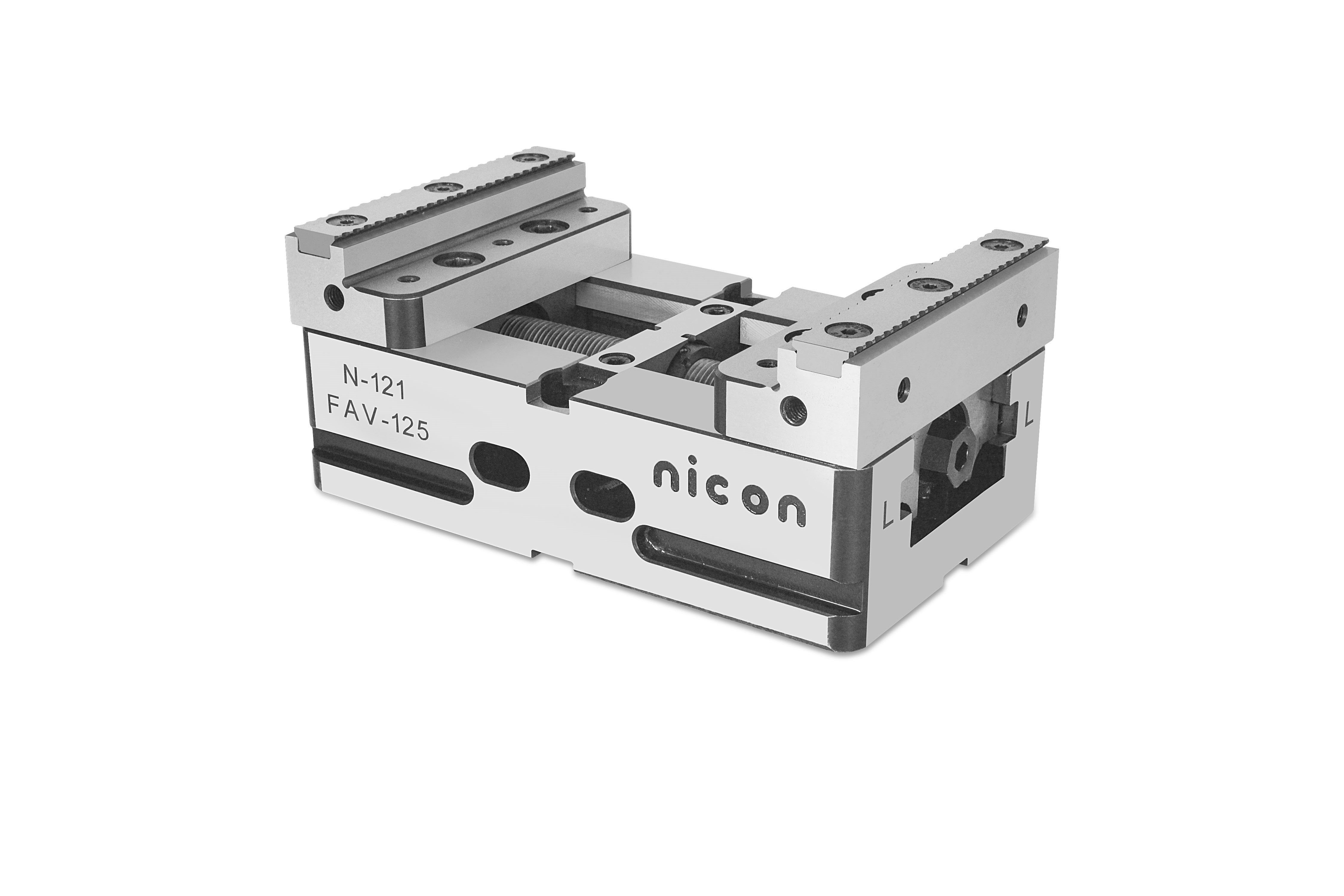

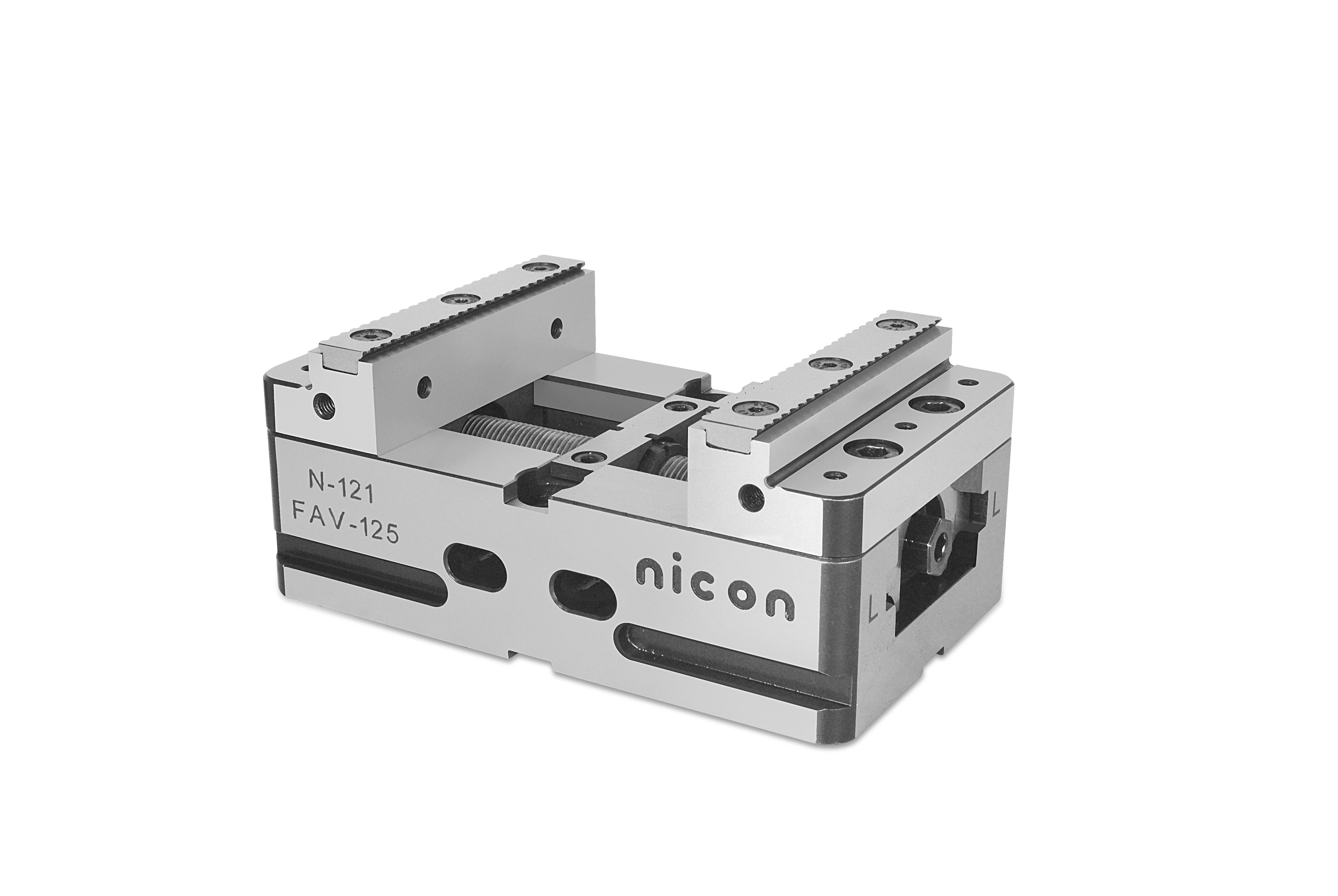

• Self Centring 5-Axis Machine Vice Designed for Precision 4 & 5-Axis CNC Rotary
  Table usage, either in horizontal or Vertical Machining and widely used with Grinding
  & Precision Milling Machines.
• Vice Precision of its Centre Repitition Position is ± 0.02mm.
• The Space Saving design and Solid Construction allow a Maximum Blocking ratio
  to Total overall Dimension of the vice.
• High Alloyed Quality resistance steel, Case Hardened HRC 60 ± 2 is Used In all
  Body and Accessories of Vice to Give Maximum rigidity, High Performance & No
  Wear.
• All Components of Vice are interchangeablew ith Perfect alignmentt o Provide differentw ork holding Solutions.
• Minimum Clamping depth of workpiece 3 or 4 mm gives enormous Material Savings.
• Maximum Clamping Pressure 5000 Kg. approximate.
• Highest Holding Power at Minimum Clamping Force.
• Vice Allows Application of Short Tools reduced vibration & Longer Life to Provide the best Finish.
• Ideal for use in 3 Axis machining centers also for mass production with multiple vices setup.

Standard Accessories
1 Work Stopper, 1 Pair of standard 16mm positioning key nuts, 4 Clamps, T Allen Key, 1 box Wrench
