Precision Vises

Description

Profile clamping vices design for the parts have been machined on 5 sides using the diamond teeth jaws, customers need a way of holding the component to machine the sixth face,these vices are a simple and cost effective solution to this problem.
Soft jaws can be purchased in steel or aluminium according to the application.
Drawings are also provided in our catalogue so customers can easily manufacture their own jaws.
Vice Precision of its Centre Repitition Position is + 0.02mm.
.The Space Saving design and Solid Construction allow a Maximum Blocking ratio to Total overall Dimension of the vice.
High Alloyed Quality resistance steel, Case Hardened HRC 60 ± 2 is Used In all Body and Accessories of Vice to Give Maximum rigidity, High Performance & No Wear.
All Components of Vice are interchangeable with Perfect alignment to Provide different work holding Solutions.

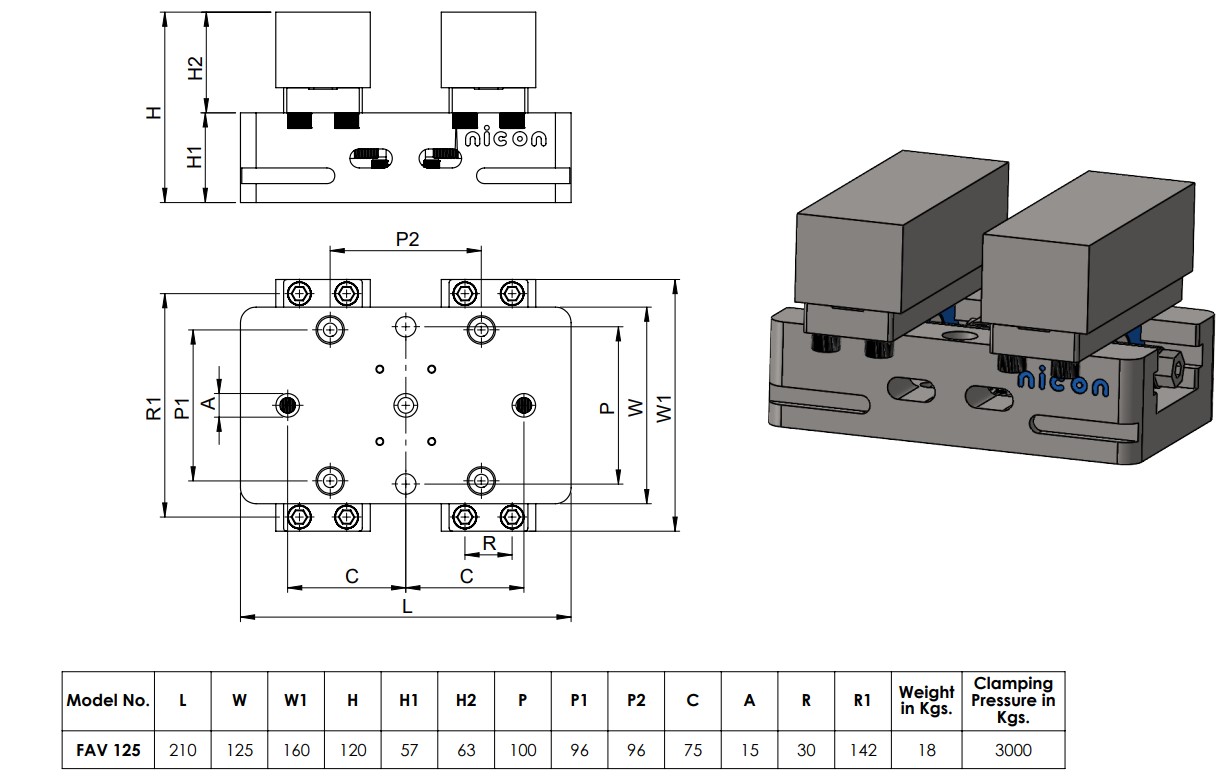

Specification by Drawings
