GRIP LOCK ZERO POINT CLAMPING RECEIVER PLATE  : N-128


LOADING IMAGES

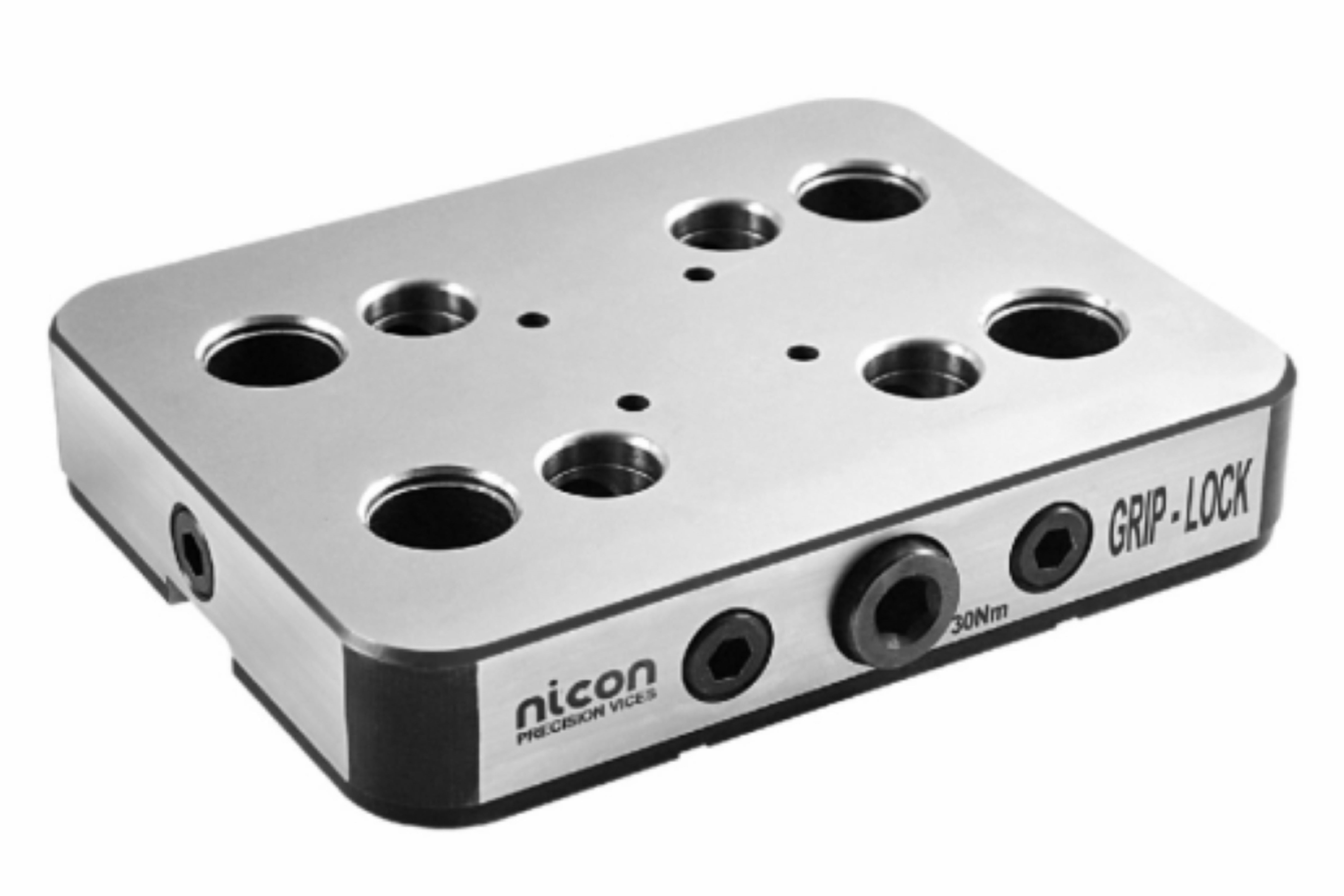

GRIP LOCK ZERO POINT CLAMPING RECEIVER PLATE

Product ID: N-128






  Description

  • Grip Lock  base plates can save the maximum positioning time of the fixture during change over.
  • Space saving compact design,Four point clamping by only one actuation screw.
  • Installing Quick Change Device in the entire production line can effectively reduce the accumulated tolerance.
  • Fixtures can be rotated 90 degrees while maintaining centering accuracy
  • Support common stud specifications in the market (52/ 96 mm bolt distance).
  • Various specifications for flexible configuration, especially suitable for 4, 5-axis machine tool with limited bed space.

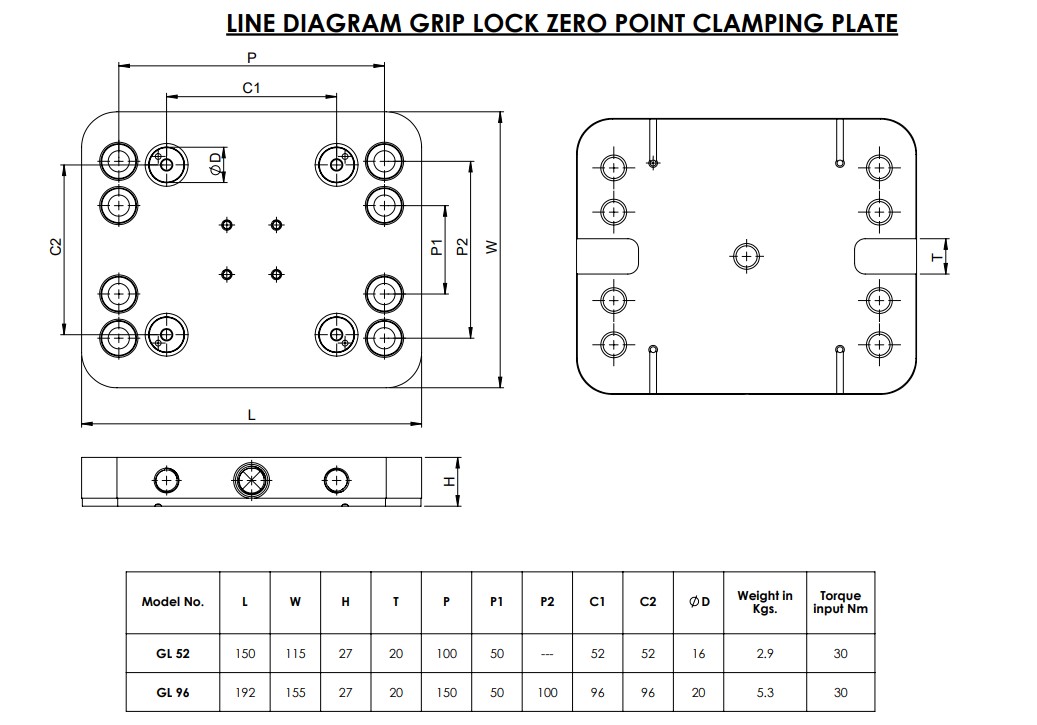

  Specification by Drawings
