3 FACE PYRAMID RAISER BLOCK (WITHOUT VICES)  : N-124


LOADING IMAGES


3 FACE PYRAMID RAISER BLOCK (WITHOUT VICES)

Product ID: N-124






  Description

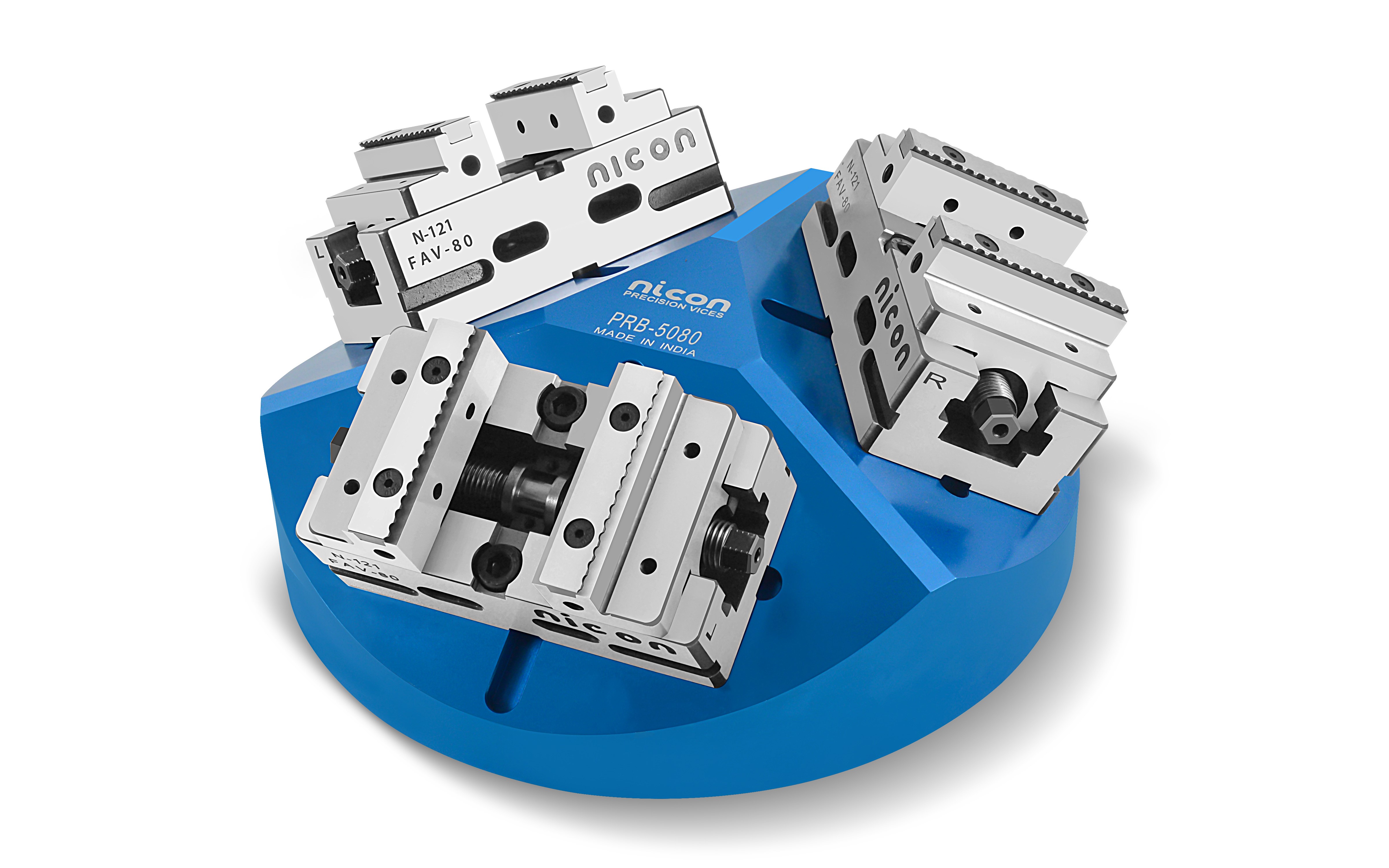

  • The Nicon Pyramid Raiser Block is designed to attach three vices for five-axis machining of multiple parts in one setup.
  • The 30-degree vice mounting surface is positioned so that each vise provides maximum access to all machined surfaces and allows for enhanced spindle and cutting tool clearance.
  • The Pyramid Raiser Block  is made of 6061-T651 anodized aluminum and has a 310mm diameter and base to fit a variety of five-axis CNC machines,5axis rotary tables. The Pyramid comes pre-drilled for easy mounting to most machine tables, pallets or sub plates.

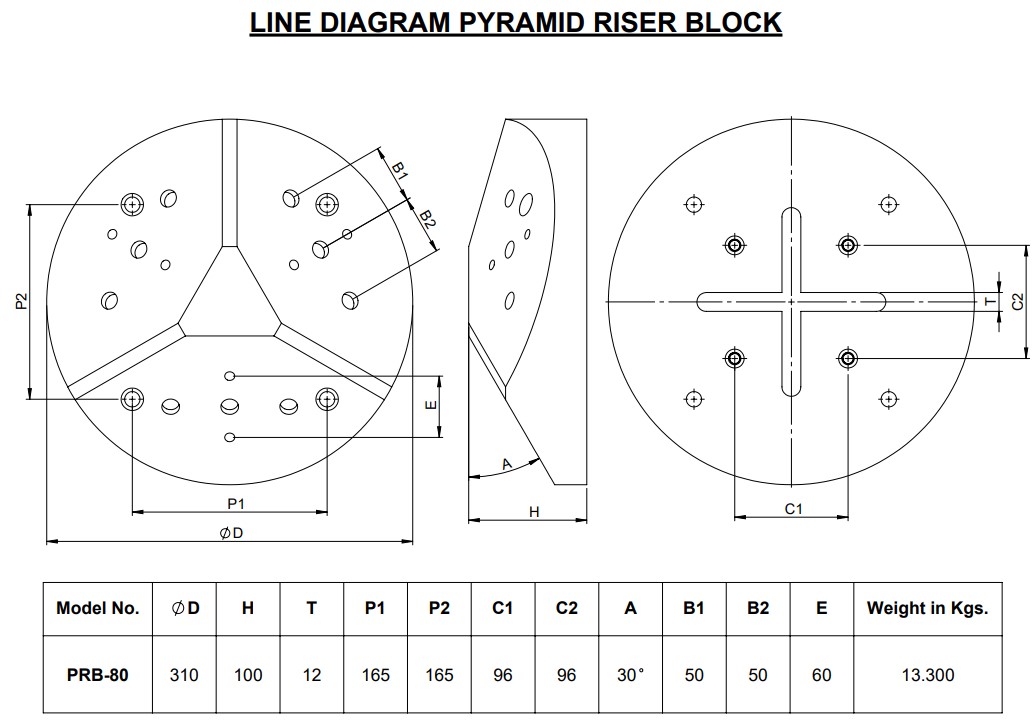

  Specification by Drawings






Y.H. TOOLS MANUFACTURERS PVT. LTD.

7A, GADAIPUR BULANDPUR ROAD GADAIPUR,
JALANDHAR CITY - 144012.
PUNJAB INDIA

CONTACT PERTICULARS

  0091-181-2601510
   0091-98155-24499, 98785-99020
   info@niconvises.com


AN ISO 9001:2015 COMPANY
©2018 Y.H. TOOLS MANUFACTURERS PVT. LTD. All rights reserved.
