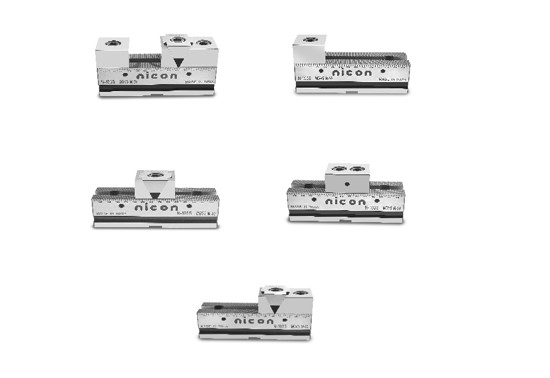

Precision Vises

Description

Adjustable vise can clamp workpieces in square, round or irregular shapes.
The user can quickly adjust the location of the Vice for different sized parts to be hold faster and more efficiently.
Hardened & ground Serreted slideways and fixed jaws for rigid clamping .
The adjustable version Multigrip vises are a totally new concept of modular clamping system able to maximize the machine table capacity and thus to increase its productivity.

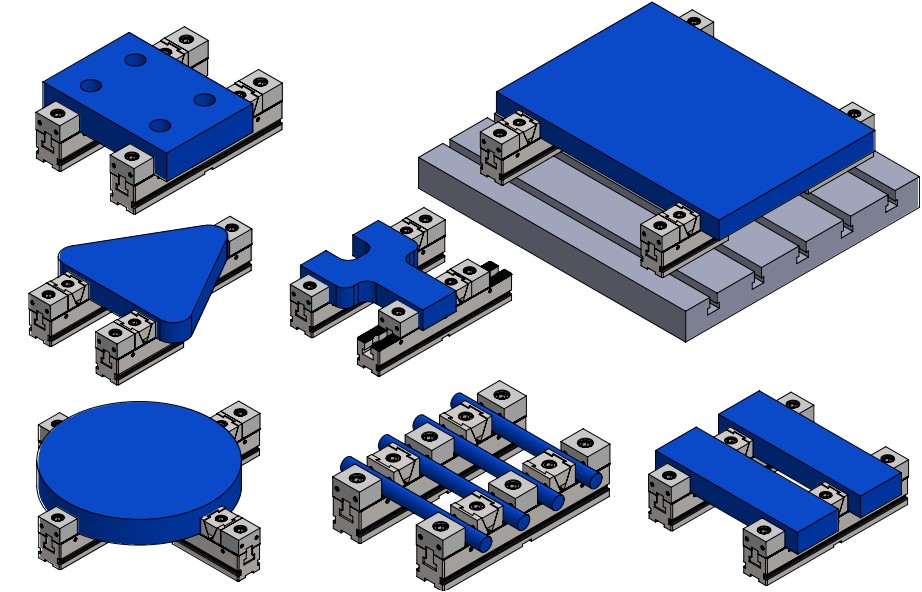

This system is designated for clamping several workpieces at the same time on the machine tool table, thus reducing tool changeover times.
Highest Accuracy in positioning and alignement ± 0.02 mm.
Multigrip vises can be vertically assembled linked each other or clamped to specific workholding structures.
High alloyed quality resistance steel, case hardened HRC 60 ±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.

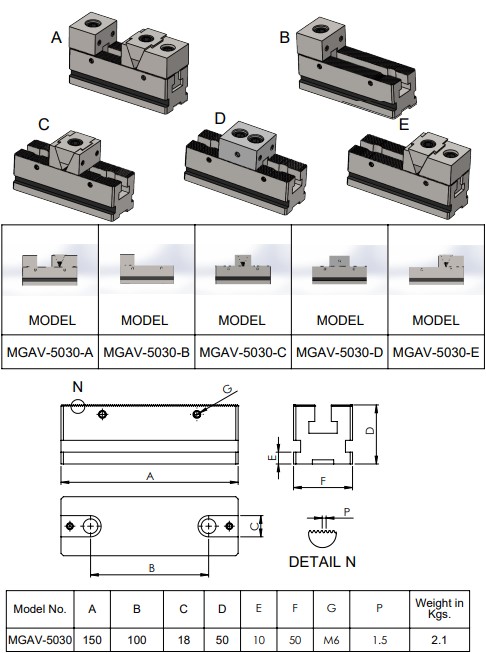

Specification by Drawings
