PULL STUDS FOR GRIP LOCK RECIEVER PLATE  : N-129


LOADING IMAGES


PULL STUDS FOR GRIP LOCK RECIEVER PLATE

Product ID: N-129






  Description

  •  Pull Studs for use in Grip-Lock Zero Point Clamping Reciver .
  •  High alloyed quality resistance steel,case hardened HRC60  is used  to give Hi performance and no wear.
  •  Zero-Point Pull Studs are compatible with Nicon 5 Axis Vices and Competitor Zero-Point systems requiring studs with     52mm  (16mm pin diameter) or 96mm (20mm pin diameter).
  •  Use these Zero Point Pull Studs to create quick-change fixtures, or mount directly to workpieces for fast part changeovers.

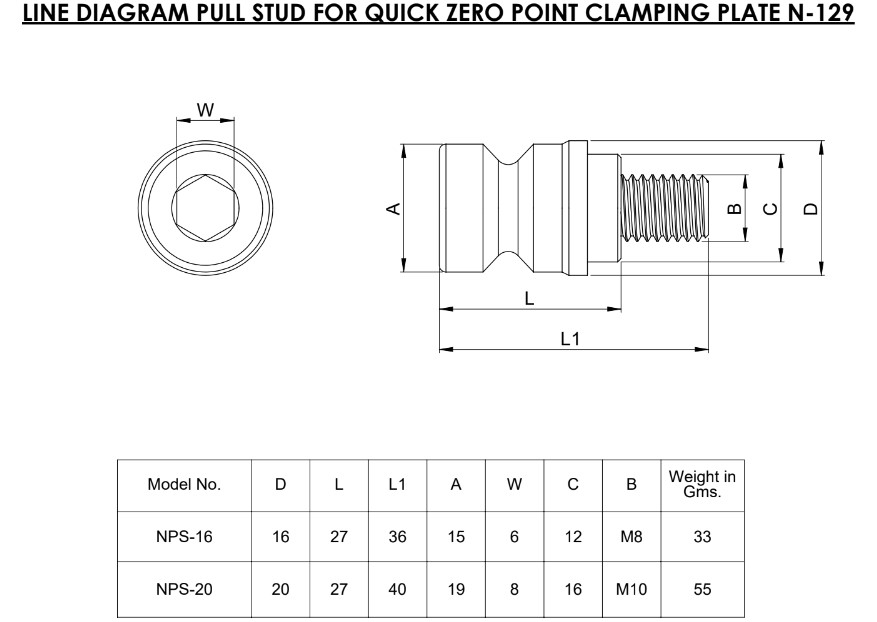

  Specification by Drawings
