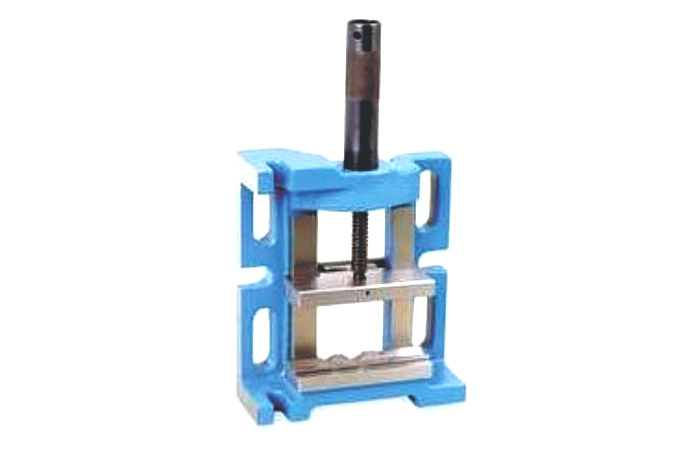

3 WAY UNIGRIP MACHINE VICE

Product ID: N-170





  Description

Key Features

  • This 3-way drill press vice available with three mounting options via two additional precisely ground surfaces end face and side face.
  • This allows for drilling along all axis with a single setting of the job and holding long workpiece which are cumbersome and difficult to manage in regular vices.
  •  Fully grounded side face allows for right angle machining with same jaw setting.
  • The jaw width acts as jaw hight facilitating longer workpieces to be held.
  • Fully grounded end face allows for right angle machining with same jaw setting.
  • Unbreakable alloy  Steel construction with ground surfaces helps the smooth lateral movement of movable jaws.
  • Rugged design provides precision and powerful clamping for drilling, tapping and reaming operations.
  • The base is slotted enabling the vice to be bolted to drill press tables, assisting in quick and accurate positioning.
  • Longitudinal and transversal prisms in the fixed jaw allow for firm gripping of round jobs of different sizes both horizontally and vertically. Special seat in jaws facilitates retaining of flat workpieces.
  • Vices are equipped with a convenient well grip mechanism.
  • Spindle moves inside the hollow handgrip allowing the vice to be used at a location away from the table edge, this feature increases the scope of application of this range of vices.

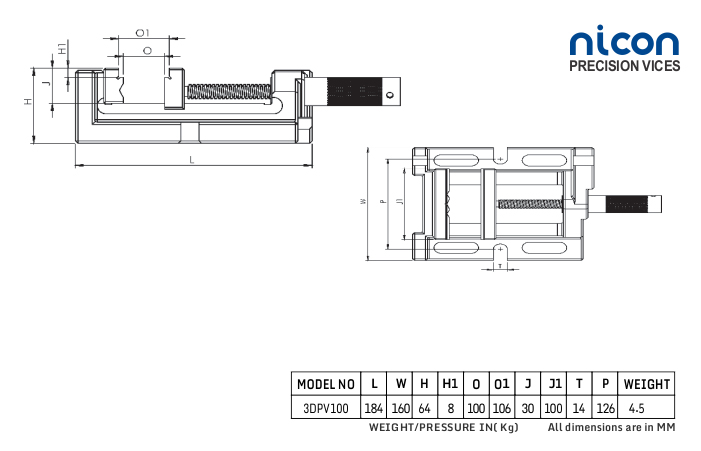

  Specification by Drawings
