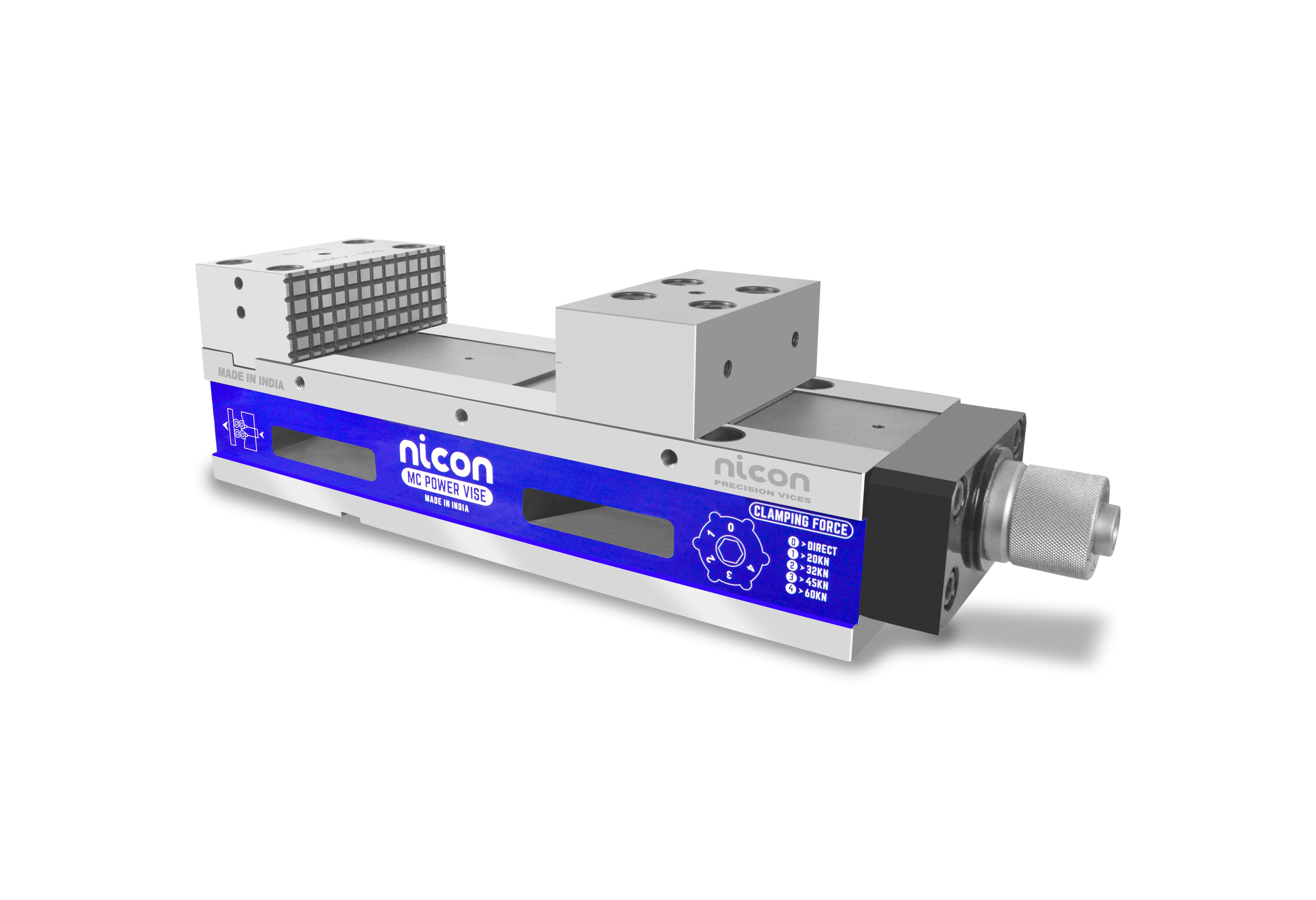

MULTIGRIP MACHINE VICE

Product ID: N-103





  Description

Key Features

.Perfect vise for flexible clamping of multiple workpieces of various sizes.

.Hardened & ground slideways and fixed jaws .

.The Multigrip  vises are a totally new concept of modular clamping system       able to maximize the machine table capacity and thus to increase its   productivity.

.This system is designated for clamping several workpieces at the same time on the machine tool table, thus reducing tool changeover times.

.HIGHEST ACCURACY in positioning and alignement ± 0,02 mm.

.Multigrip vises can be vertically assembled linked each other or clamped to       specific workholding structures.
.High alloyed quality resistance steel, case hardened HRC 60 ±2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.

.Each vise is supplied with 3 fixed jaws,2 wedge clamps & 2 backend jaw  plates.

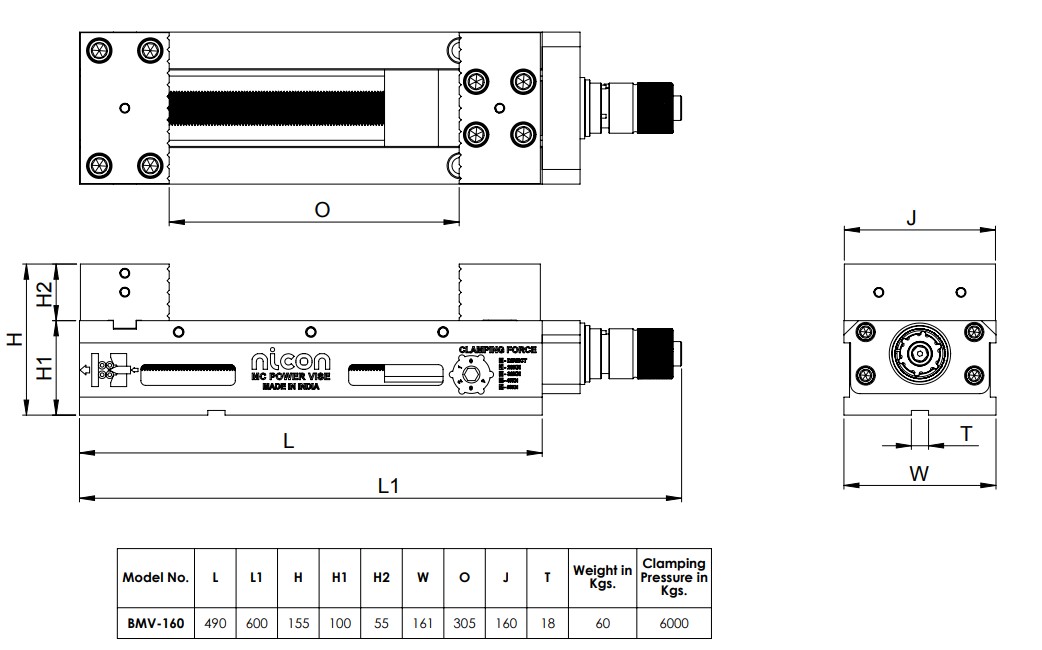

  Specification by Drawings
