Key Features

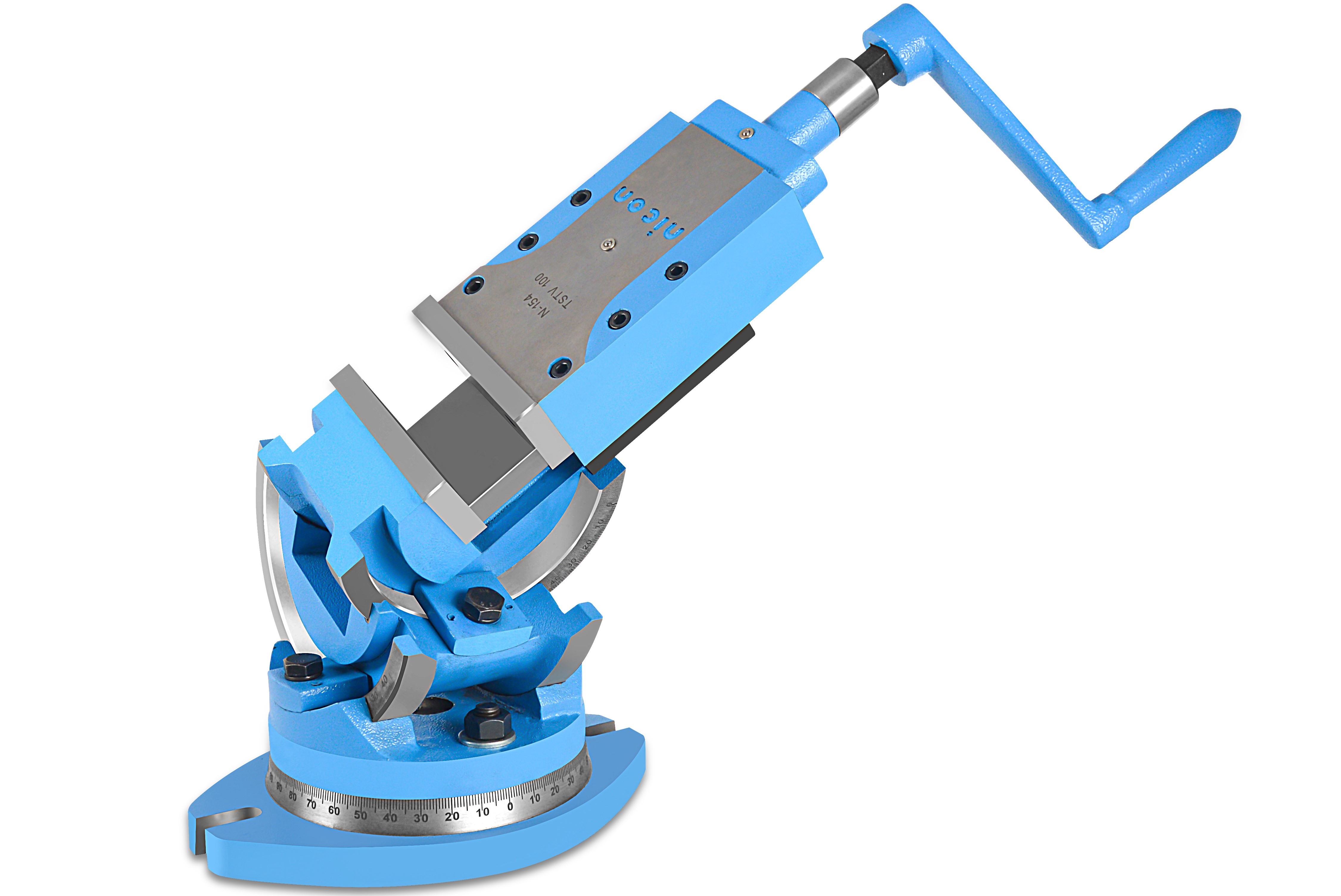

• 3 way Tilting vices provide for 3 axis setting of the workpiece in special milling, drilling, grinding, Shaping and jig boring applications.
• Vices have 2 angular slides which allow the workpiece to be set at any desired angle - 45° tilting range on either side and 90° vertical indexing. The 360° swivel base further allows rotation along the vertical axis.
• These vices are manufactured from close-grained hi-tensile seasoned cast iron.
• Unbreakable steel crank handle.
• Use of hi-tensile grade fasteners provides strength and rigidity to these vices.
• hardened and ground jaws.
• A milled slot in the vice base helps in the accurate location of the vice on the machine table using rectangular locating nuts.
• Accuracy in parallelism of jaws 0.02/100mm.
• "Hold Down" slots allow for secure clamping of the vice on the machine table.
