Key Features

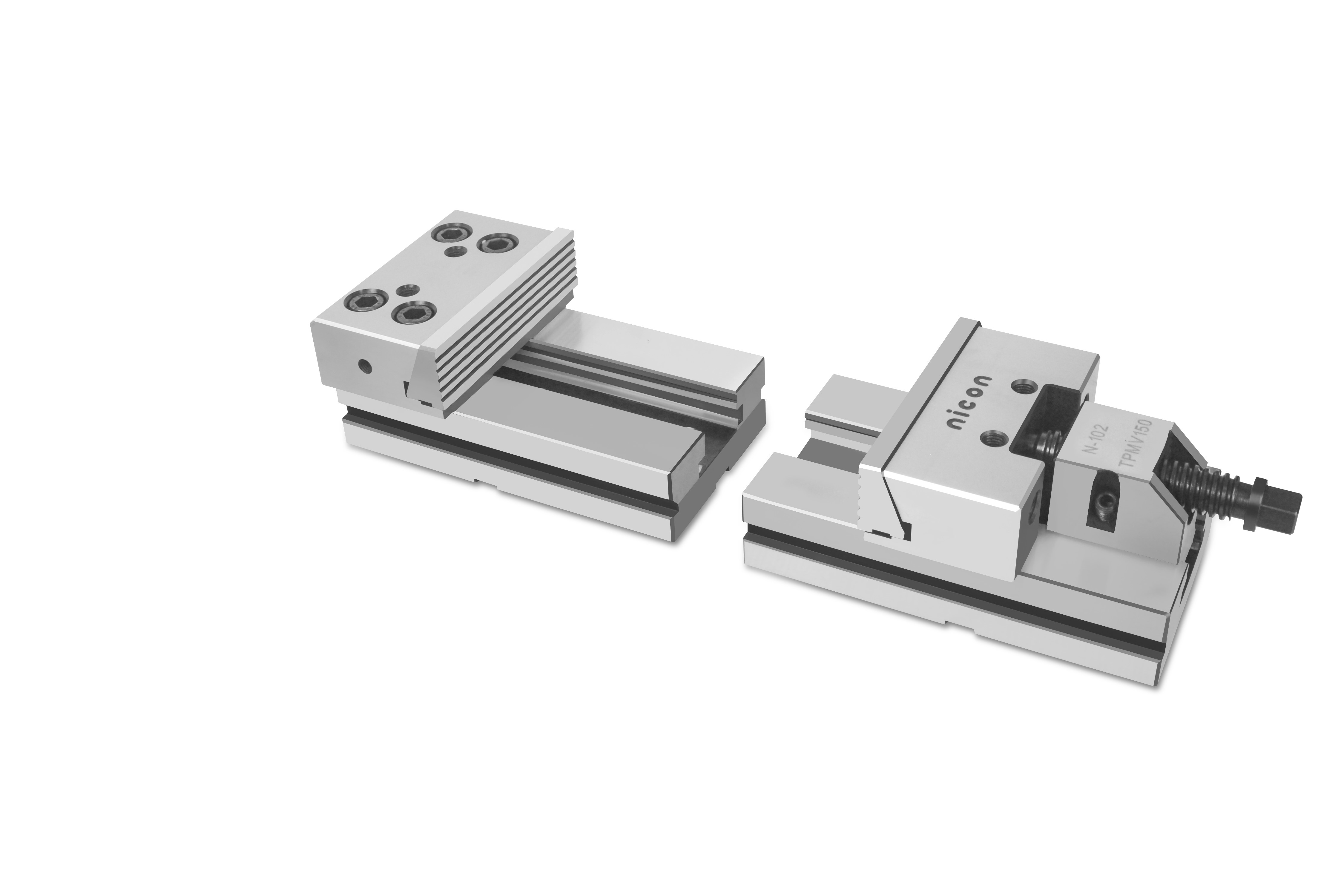

• Two Piece Modular Vice designed for precision milling,
  grinding and widely used with CNC and standard milling machines.

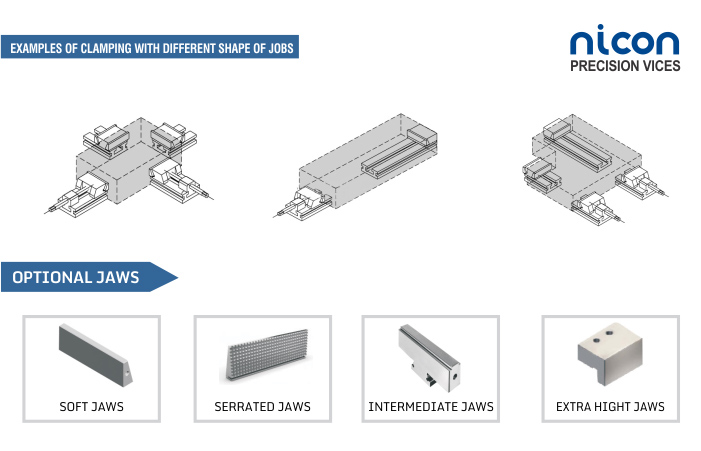

• Modular elements allow you perfect clamping even of big workpieces wich need heaviest machining using the machine table as surface.
• This vice is a solution for a lot of applications and a perfect complement or alternative to single or double vices.
• Both jaws plates are in pull-down angle. This ensures, during the clamping operation a down load run of the workpiece against the vice base and thus a precise and safely clamping.
• All components of vice are interchangeablew ith perfect alignmentt o provide different work to hold solutions.
• The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
• For extra tapped hole with ground back jaw rear face increase maximum opening capacity with the addition of jaws extensions.
• High alloyed quality resistance steel, case hardened HRC 60 ±2 is used in all body and accessories of vice to give maximum
  rigidity, high performance & no wear.

         Standard Accessories
         1 Work Stopper, 1 Pair of standard 16mm positioning key nuts, 4 Clamps, T Allen Key, 1 box Wrench
