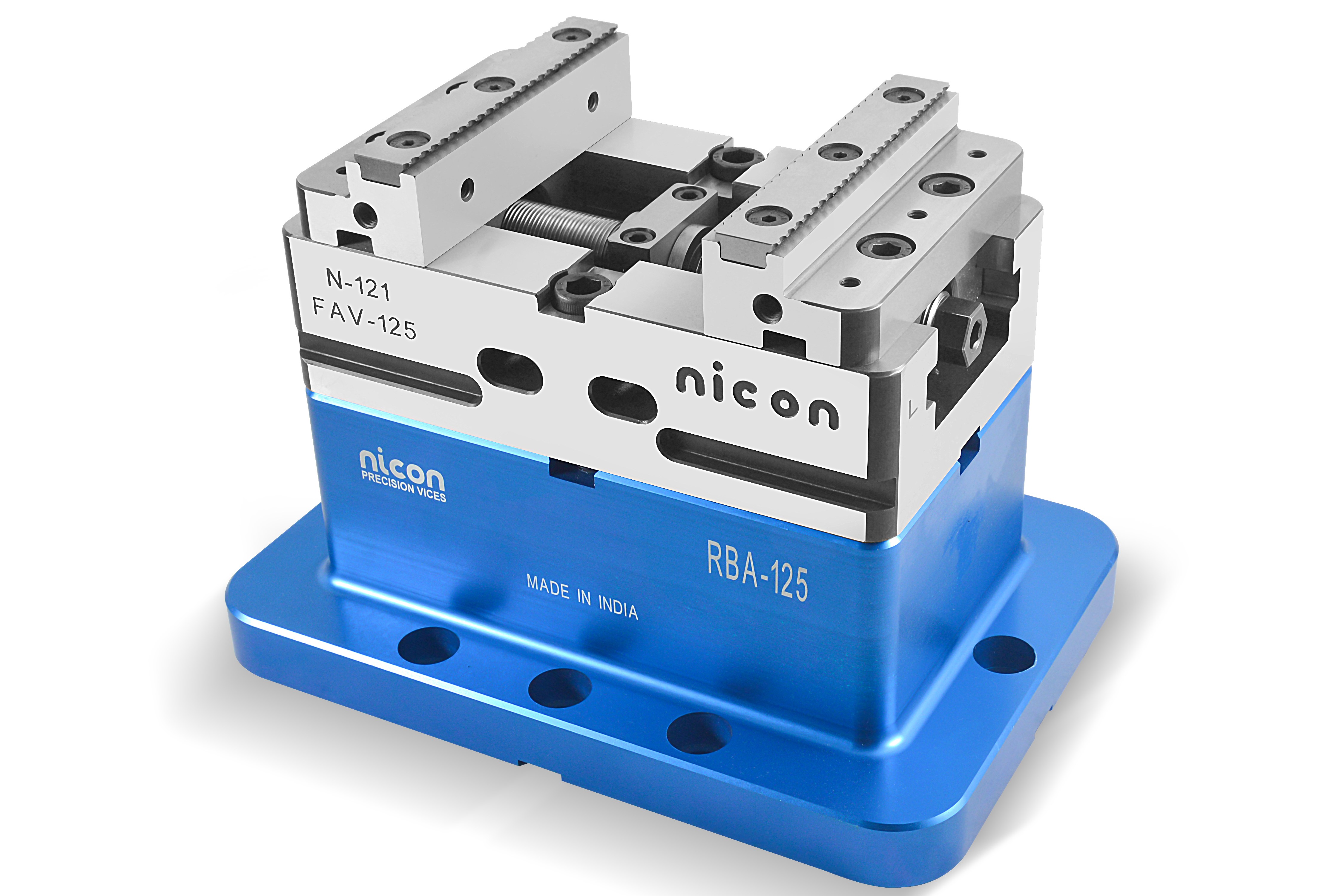

- MC Power Machine Vice Designed for Precision Milling & Widely Used With CNC Vertical ,Horizontal Machining Centre.
- Mechanical Power Booster system with Easy and quick adjustment of 5 different clamping forces enhances efficiency and eliminates losing power.
- Powerful down thrust Leaf-Spring mechanism eliminates workpiece lifting.
- An enlarged double thread master lead screw rod could make movable Jaw move forward and backward fast with High rigidty.
- High-Grade FCD 60 Body with U-shape design enhances structure rigidity and reduces distortion.
- The tolerance of matched bed height is within ±0.02mm can combine many sets together for simultaneous processing to improve production efficiency.
- High Alloyed Quality Resistance Steel, Case Hardened HRC 60 is used in Clamping Jaws to give High Performance & No Wear.
- Accuracy in Parallelism & Squatness With in 0.02/100mm.
- Interchangeable Jaw design. Various jigs for many uses can be installed on Vise.
- Tenon & Tenon Slots Provided for Effortless Truing of Vice on Machine Table.
- High Clamping Force can Achieve by Effortless handle movement Wich eliminates Hammering on vice handle.
- Maximum Clamping Force 6000 kg.
Scope of Supply
1- MC Power Machine Vice.
4 Side Clamps.
1 BOX Wrench.
2 Positioning Key Nuts.
3 Slide Covers
